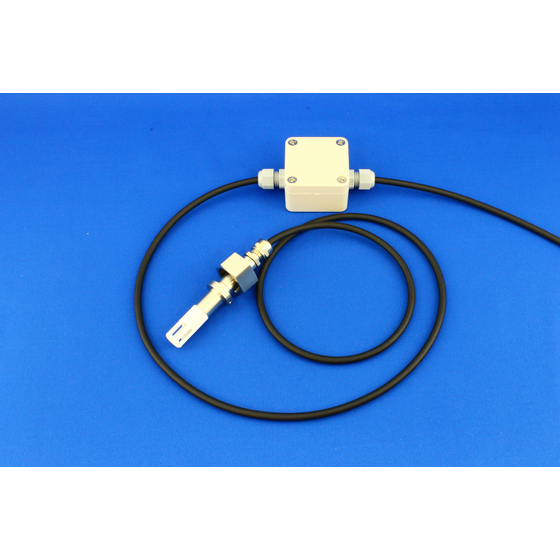

Pressure-resistant humidity converter TA50P
Pressure-resistant humidity converter TA50P
This is a humidity sensor that outputs relative humidity as an analog electrical signal. It comes in various shapes and options. It can be used in a range from vacuum to 1 MPa.
* The sensor cable length and cable extraction direction have various shapes. * There are many options available, such as temperature sensors, waterproof and water-repellent processing for condensation environments, insulated resin probes, humidity display devices, and sensor filter caps. * The humidity sensor element TI-A is compatible, so no circuit adjustment is needed during replacement. * Traceability certification can be obtained. * The aging change is less than 1% RH per year (in normal temperature, normal humidity, and clean environments), demonstrating excellent durability. * Due to the built-in stabilized power supply, it can be used with a power supply voltage of DC 9-25V. * Custom products, including changes in specifications and shapes, can be accommodated from a single unit.
Inquire About This Product
basic information
Specifications Operating temperature range: -25 to 100℃ (sensor part) -5 to 55℃ (circuit part) Operating humidity range: 0 to 100%RH Humidity output: Selectable from DC0 to 1V, 0 to 5V, 1 to 5V, DC4 to 20mA Temperature output (optional): Selectable from DC0 to 1V, 0 to 5V, 1 to 5V, DC4 to 20mA (for 0 to 100℃ or -20 to +80℃) or 3-wire resistance Humidity measurement accuracy For TA502: ±2%RH (10 to 90%RH) ±3%RH (2 to 10%RH, 90 to 100%RH) For TA503: Please add ±1%RH to the values for TA502 Options * Platinum temperature sensor (Pt100Ω, JIS Class A, 3-wire resistance output) * Waterproof and water-repellent treatment for humidity sensor element (improves durability in condensation environments) * Sensor filter cap (protection from dust and water droplets) * Humidity controller (voltage-free contact output for controlling humidifiers, dehumidifiers, etc., LED display of current and set values, with DC power supply function) Other
Price range
P2
Delivery Time
P4
Applications/Examples of results
Frequently Used Industries Food and Beverages Paper and Pulp Chemicals Petroleum and Coal Products Rubber Products Glass and Ceramics Wood Ceramics Resins and Plastics Ferrous/Non-Ferrous Metals Industrial Machinery Robots Food Machinery Machine Elements and Parts Consumer Electronics Industrial Electrical Equipment Electronic Components and Semiconductors Optical Equipment Automobiles and Transportation Equipment Aerospace Shipbuilding and Heavy Machinery Testing, Analysis, and Measurement Energy Medical Devices Pharmaceuticals and Biotechnology Architecture, Civil Engineering, and Engineering Building Materials, Supplies, and Fixtures Printing Industry Contract Manufacturing and Processing Other Manufacturing Trading Companies and Wholesalers Retail Medical and Welfare
Company information
We manufacture and sell various humidity sensors.
