High-density insert featuring fully implemented contacts, usable up to contamination level 3 and 500V.

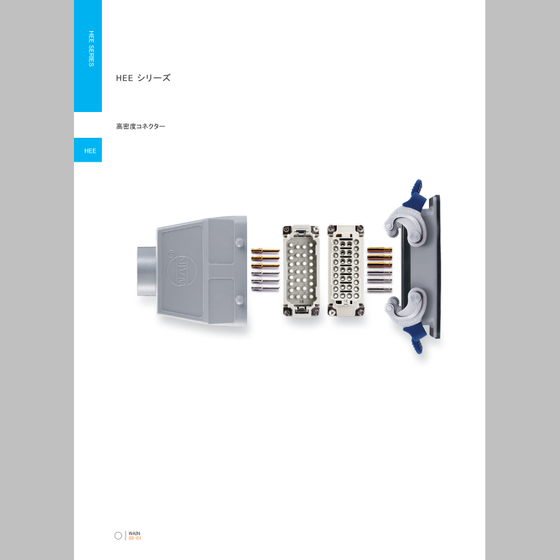

The "High-Density Insert HEE Series Comprehensive Catalog" is a comprehensive catalog from Parts Supply Center Co., Ltd., which sells various electronic component parts and processed products assembled from component parts. It features items such as the "HEE-010 High-Density Insert" rated for 500V 16A 10+, as well as "HEE-018 High-Density Insert" and "HEE-032 High-Density Insert." [Contents Included] ■ HEE Series High-Density Inserts Technical Specifications ■ HEE Special Contact Arrangement (1000V Compatible) ■ HEE-010 High-Density Insert ■ HEE-018 High-Density Insert ■ HEE-032 High-Density Insert, etc. [Currently, the catalog is available for free! If you would like a physical copy of the catalog, please contact us at the information below.]
Inquire About This Product
basic information
【Featured Products】 ■HEE-010 High-Density Insert: 500V 16A 10+ ■HEE-018 High-Density Insert: 500V 16A 18+ ■HEE-032 High-Density Insert: 500V 16A 32+ ■HEE-046 High-Density Insert: 500V 16A 46+ ■HEE-032×2 High-Density Insert: 500V 16A 64+ ■HEE-092 High-Density Insert: 500V 16A 92+ ■HEE-040 High-Density Insert: 500V 16A 40+ ■HEE-064 High-Density Insert: 500V 16A 64+ *For more details, please refer to the catalog or feel free to contact us.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Parts Supply Center Co., Ltd. handles industrial connectors such as industrial rectangular connectors, I/O connectors for sensors, and connectors for solar power generation systems (PV). The products we offer are widely adopted in cutting-edge technologies such as machine tools, industrial robots, solar systems, railway vehicles, and medical devices. This site introduces excellent technologies from around the world.
