Achieving high magnetic fields through the use of rare earth magnets!

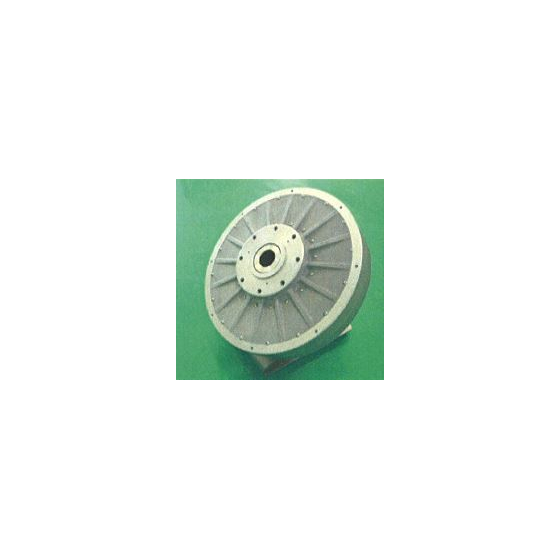

The "SKY-HR350W" is a highly efficient generator that achieves a high magnetic field through the use of rare earth magnets and a multipole structure, generating a high output voltage even at low rotational speeds (below 300 rpm). By adopting a rotating field magnet type where the magnetic part rotates and a coreless structure that does not use an iron core, it has the advantage of having no electrical contact points, which eliminates cogging torque and iron losses. This results in a smooth start and a highly reliable, efficient generator. This product is specially designed and manufactured for small wind power generation. 【Features】 ■ High output, efficient power generation system ■ Uses rare earth magnets ■ Specially designed and manufactured for small wind power generation ■ Coreless structure ■ No cogging torque or iron losses *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Basic Specifications】 ■Outer diameter dimensions: φ350mm × 117mm ■Number of poles: 40 poles ■Magnet material: Rare earth magnet ■Number of coils: 30 (10 per 3 phases) ■Rated power, maximum power (kW): 2 (300rpm), 3.5 (500rpm) ■Rated current, maximum instantaneous current (A): 14(A), 16(A) ■At 100rpm: ・Voltage: 49.6V ・Current: 4.84A ・Output: 240W ■At 200rpm: ・Voltage: 98.6V ・Current: 9.62A ・Output: 950W ■At 300rpm: ・Voltage: 146.3V ・Current: 14.3A ・Output: 2096W *For more details, please refer to the catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■For small wind power generation *For more details, please refer to the catalog or feel free to contact us.
Company information
Sky Electronics is a specialized manufacturer of precision coils and prototype coils, and in order to contribute to environmental issues, we develop and sell outer rotor generators such as micro generators, small wind turbines, bicycle generators, and small generators for disaster prevention.
