Simple structure! A small cleaning nozzle for low to medium pressure specifications, connected with screws or pins.

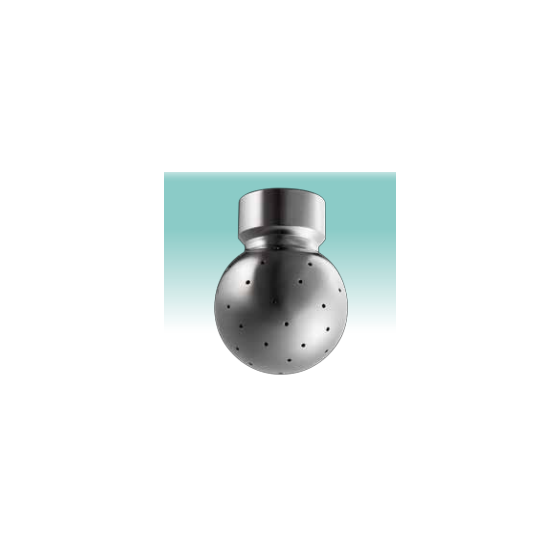

The "Cleaning Nozzle (Low to Medium Pressure Specification) Shower Ball" is a compact cleaning nozzle for low to medium pressure, available in sizes Φ40, Φ60, Φ80, and Φ100. It can be connected via screw or pin connection. In addition to standard specifications, it can also be customized to fit specific tanks. It is ideal for cleaning tanks, vessels, and is used in industries such as chemicals, paper, pulp, printing, food, and healthcare. 【Features】 ○ Shower Ball ○ Compact cleaning nozzle for low to medium pressure ○ Simple structure ○ Screw or pin connection ○ Options available to match tank specifications For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Specifications】 ○ Screw size: 3/4F to 2F, φ21 to φ50 ○ Operating pressure: 0.1 to 0.5 MPa ○ Spray flow rate: 35.4 to 395 ℓ/min ○ Heat resistance temperature: 60℃ ○ Material: S304, S316L ○ Spray shape: Straight ○ 3D cleaning ● For more details, please contact us or download the catalog. ● Download 3D CAD data here. https://ikeuchi.partcommunity.com/3d-cad-models/?languageIso=en&info=ikeuchi/metric_unit/tank_cleaner/fixed_tank_cleaning_nozzle/swb_series.prj
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
【Usage】 ○ Cleaning of tanks, vessels, etc. ● For more details, please contact us or download the catalog.
