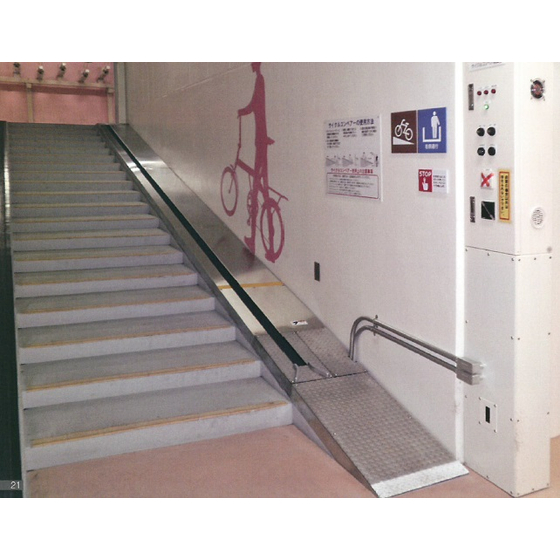

Can be installed on existing slopes! Retrofit type cycle conveyor easily transports electric bicycles over 30kg!
The "MCY-CV2 type" is a retrofitted cycle conveyor that is installed on existing slopes. It operates with energy-saving features through sensor-detection timers. We provide reliable support from design to maintenance. 【Features】 ○ Operation instructions via voice guidance ○ Adjustable conveying speed For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Specifications】 ○ Application and Model: Standard Two-Wheeled Bicycle / MCY-CV2 Type ○ Tread Width: 80mm ○ Horizontal Length: 12000mm ○ Lifting Stroke: Below 3000mm ○ Transport Distance: 12369mm ○ Slope: 1/4 (14.036°) ○ Transport Capacity: Below 800 units/hr ○ Operating Method: Ascending Only ○ Rated Speed: 40m/min (Variable Speed) ○ Belt Type: Width 100–150mm (Endless) Polyester Canvas, Surface PVC (Green) ○ Drive Unit: Reduction Gear: Electric Motor with Reducer Main Motor: 0.75–1.5KW Drive Unit Location: Upper Floor Descent Pit ○ Operation Method: Switch Key Selector, Photoelectric Sensor Automatic Start/Stop ○ Power Supply: AC200V 3-Phase 50Hz/60Hz ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Price range
P6
Delivery Time
P4
※Please contact us.
Applications/Examples of results
Can be installed with an existing slope width of 300 mm or more. The construction will be completed in 3 days. ● For more details, please contact us or download the catalog.
