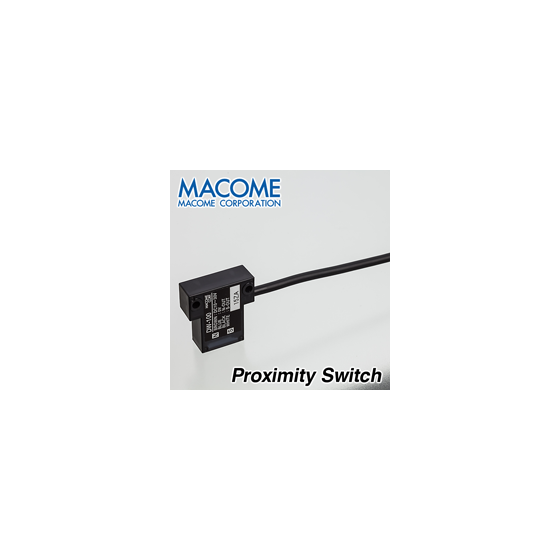

Magnetic proximity switch, N pole/S pole, individual 2 outputs, waterproof, IP-67
Magnetic proximity switch DW-100, DW-350
Magnetic switch (magnetic sensor) using our unique element, different from reed switches, Hall elements, and MR elements, identifies and outputs the N pole and S pole.
There are various detection elements such as reed switches, Hall elements, MR elements, and TMR elements, but our company utilizes a unique "saturable coil" for sensing. Since the outputs are generated separately for the N pole and S pole, the range of applications expands depending on the combination of magnets used. By selecting the appropriate magnets, the detection distance can be extended to over 100mm. It can detect magnets underground. Depending on the application, it can also sense within the soil of golf courses, baseball fields, and various sports venues. For example, if the S pole is detected for positioning, it can decelerate, and if the N pole is detected, it can stop. Normally, it operates under N pole control, and if the S pole is detected, it can perform an unconditional emergency stop, all with a single switch. By using N and S magnets on tags, binary codes can be created, which can also be utilized for sorting tasks. Since it detects the magnetic field generated by the magnets, it is not affected by dirt or dust. Sample lending is available. It can be used in various scenarios, from polarity discrimination of magnets to non-contact detection, from manufacturing lines to inspection jigs. Custom options, such as completely submersible types, are also available while maintaining the electrical specifications.
Inquire About This Product
basic information
**Features** - It detects the magnetic field generated by magnets, so it is not affected by dirt or dust. - IP67, rectangular case - IP67, M12 case - It is possible to identify the N pole and S pole of a magnet. There are separate outputs for N pole detection and S pole detection, allowing for two types of judgments: whether there is an N pole or an S pole. - DC 4-wire type. NPN transistor open collector outputs for N pole and S pole, each with 2 separate outputs (PNP available upon request). - For environments submerged in water constantly, please consult us for IP-68 or higher. - Various types of magnets for detection are also available. Magnetic Magnet Sensor
Price information
Please contact us.
Price range
P1
Delivery Time
P3
※Please contact us.
Applications/Examples of results
Positioning of automated warehouses, pallet for multi-story parking, unmanned transport carts, golf carts, amusement equipment, theme park attractions, detection of safety door opening and closing, among many others.
Line up（3）
| Model number | overview |
|---|---|
| DW-100 | IP67, square case |
| DW-350 | IP67, M12 case |
| DW-351 | IP67, M12 case |
catalog（6）
Download All Catalogs
Magnetic proximity switch "DW-100, DW-350/DW-351" N pole / S pole individual output
