【Pharmaceutical Industry】Same stirring performance and easy scale-up! Comes with a lifting device for easy disassembly and cleaning!

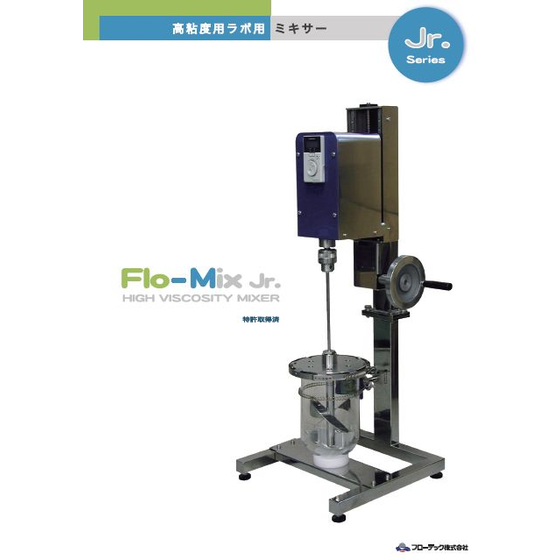

The "Flo-Mix Jr." is a laboratory mixer capable of stirring high-viscosity fluids. Its feature is that scaling up is easy due to the same stirring performance. You can achieve the same results in actual production machines. Additionally, it comes with a lifting device that makes disassembly and cleaning easy. Since it is not a clamp connection, centering is also unnecessary. 【Features】 ■ Capable of stirring high-viscosity fluids (up to 20,000 mPa·sec) ■ Almost no cavitation bubbles generated even when stirring high-viscosity fluids ■ Easy removal of air bubbles from the liquid surface ■ Easy uniformity of fluid temperature ■ Can mix liquids with powders or high-viscosity fluids with low-viscosity fluids * For more details, please download the catalog or contact us.
Inquire About This Product
basic information
【Specifications】 ■Viscosity: up to 20,000 mPa·sec ■Stirring capacity: 2.0L ■Motor and driver specifications ○Rated output (continuous): 120W ○Reduction ratio: 10:1 ○Power input ・Rated voltage: Single-phase 100-120V (tolerance range -15 to +10%) ・Rated frequency: 50/60Hz (tolerance range ±5%) ・Rated input current: 3.3A (maximum input current 6.8A) ○Speed control range: 8-400rpm ○Permissible torque: 4.1N·m (8-200rpm) 3.4N·m (300rpm) 2.6N·m (400rpm) ○Speed setting method ・Digital setting via dial ・4-stage speed setting available ■Dimensions: W360×D350×H880 (when lowered)/H1060 (when raised) ■Shaft fixing method: Chuck type (maximum φ10mm) *For more details, please download the catalog or contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the catalog or contact us.
