It is effective in microscopes that dislike low-frequency vibrations that cannot be completely eliminated by passive vibration isolation tables. It can be used with just a small compressor and power supply.

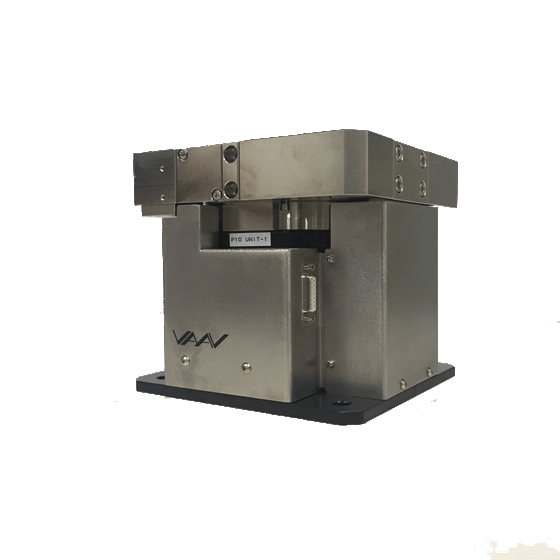

The Linear Active Vibration Isolation Unit "VAAV-S" uses a unique active vibration isolation algorithm for high-speed calculations, and instantly cancels vibrations with a super-fast response linear actuator and ultra-sensitive velocity sensors that do not use air. Since only air springs are used for load support, it can provide world-class vibration isolation performance through floor feed-forward control using ultra-sensitive velocity sensors deployed on the floor, as long as there is a small compressor and power supply. 【Features】 ○ Excellent responsiveness ○ Minimal air source required ○ High cost performance For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Specifications】 ○ Control Degrees of Freedom: 3 axes, 6 degrees of freedom ○ Position Accuracy: ±1000μm ○ Required Air Source: 0.5MPa or more, consumption flow rate equivalent to passive ○ Required Power Supply: AC 100V–240V (50/60Hz), 200W ○ Control Method: Speed feedback, floor feedforward ○ Maximum Thrust: Horizontal: 20N, Vertical: 40N Note: When used as 4 units per platform ○ Generated Magnetic Field: 0.04μT or less Note: AC magnetic field at a position 150mm away from the unit ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
【Applications】 ○ Electron microscope ○ Scanning tunneling microscope, atomic force microscope, and optical measurement devices ○ Vibration isolation measures for installation floors with significant low-frequency vibrations ● For more details, please contact us or download the catalog.
