A display panel composed of an organic polymer TFT array capable of operating with arbitrary waveforms.

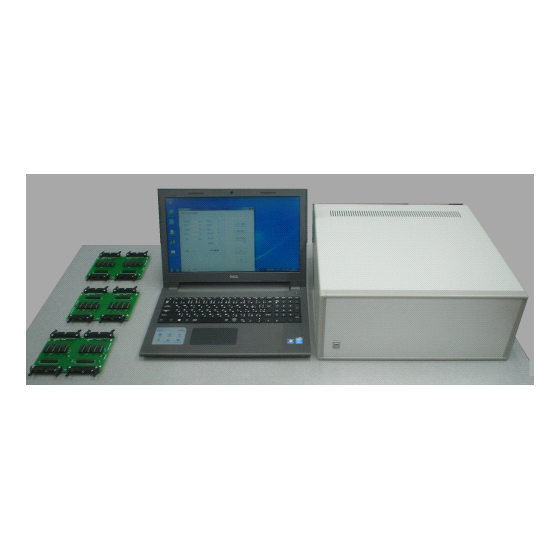

The organic TFT driving device "Model OW-100" is a driving device capable of operating a display panel composed of an organic polymer TFT array with arbitrary waveforms. 【Main Specifications】 ○ Number of Channels → Gate Electrodes: 64 → Source Electrodes: 64 → Source Inverted Output: 64 → Common Electrode: 1 ○ Maximum Current → Gate: 0.5mA → Source: 0.5mA → Common: 5.0mA For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Specifications】 ○ Number of Channels → Gate Electrode: 64 → Source Electrode: 64 → Source Inverted Output: 64 → Common Electrode: 1 ○ Maximum Current → Gate: 0.5mA → Source: 0.5mA → Common: 5.0mA ○ Overcurrent Protection: Supports only short circuit (turns off only the shorted electrode) ○ Set Voltage: Time setting and voltage rise time comply with user specifications ○ Video Display → Up to 100 display patterns possible → Number of driving channels can be set from 1 to 64 ○ Display panel and driving device can be connected with a flat cable connector ○ Power Supply: AC100V 50Hz/60Hz 300W ○ Main Body Dimensions / Weight: 430W x 450D x 177H (mm) / Approximately 10kg ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
Company information
Since our establishment in 1972, we have supported engineers and researchers involved in displays. We manufacture and sell various glass substrates and world-standard EHC cells both domestically and internationally, which are the core of our business. In recent years, there has been a growing demand for diverse metal deposition substrates and high-definition patterned glass substrates. As peripheral equipment, we provide custom small LCD panel assembly systems and wet process equipment, as well as dedicated systems for measuring and inspecting organic EL and organic solar cells, including simple jigs and more.
