Hardness testing in the field, process line, and quality assurance.

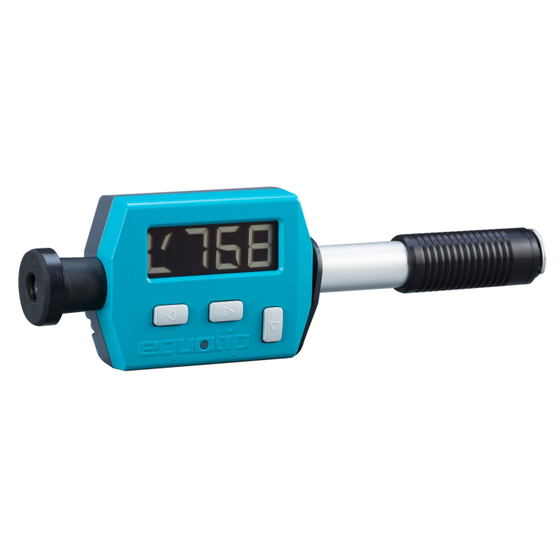

◆◇◆【Same-Day Support】 With FTS, repairs and calibrations are handled domestically ◆◇◆ The Echo Chip Piccolo 2 is a very compact model equipped with memory and communication functions, part of the Echo Chip series Bambino 2. Additionally, using the included transfer software, transferring data from the USB port to a PC is easily possible. (Conversion to text data and incorporation of unique correction factors are also possible.) It can directly display hardness values (HL, HV, HR, HB, HS). There are two types available: the "D type" for measuring flat surfaces and the "DL type," which is ideal for measuring the bottom of teeth, corners, and welds. 【Features】 ■ Excellent operability, making it ideal for on-site testing without individual differences. ■ High precision with a testing accuracy of ±4HL and excellent reproducibility. ■ Capable of converting to all hardness values (HV, HR, HB, HS, etc.). ■ Can incorporate unique conversion curves. ■ Automatic recognition of impact direction (360°).
Inquire About This Product
basic information
In 1975, a new hardness testing machine was developed by Dr. Leeb and Proceq (Switzerland). The product name "Eqoutip" was derived from the initials of the inventor "Dr. Leeb," along with "HL" for hardness, and "Energy" and "Quotient." The Echo Test hardness testing machine has been recognized worldwide for its high testing accuracy and reliability, and it became an ASTM (USA) standard in 1996 and a DIN (Germany) standard in 2007.
Price range
Delivery Time
Applications/Examples of results
Measurement of hardness values (HL, HV, HR, HB, HS) ■ All materials such as iron, aluminum, copper, etc. ■ Automotive, steel, aerospace, machine tools, construction machinery, molds, shipbuilding industries, etc. ■ Heat-treated products, raw materials, tempered products, cast products, forged products, welded parts, etc. ■ On-site management, quality assurance management, etc. ■ Total management in the production process, etc.
Detailed information
-
Piccolo 2 D Type Standard Configuration - Piccolo 2 main unit - φ13.5mm support ring - HLD test block - AC adapter - Strap - Cleaning brush - Carrying case - Transfer software (CD-R) - USB cable - Instruction manual (1 copy)
