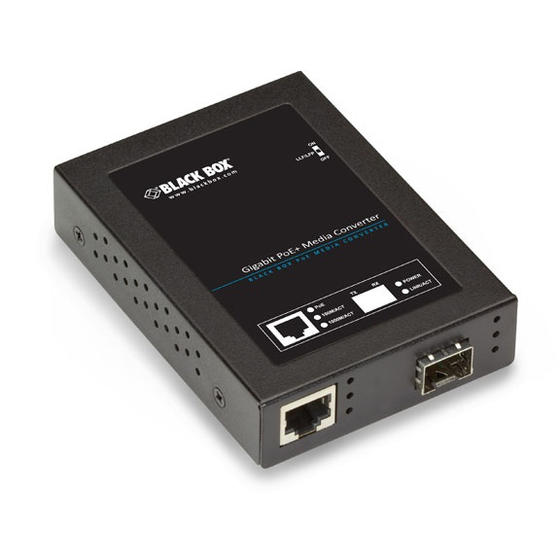

Convert optical fiber to copper wire and transmit 30W power and data to a remote PoE+ device.
● One 10/100/1000Mbps copper port and one 1000BASE-X SFP port for single-mode and multi-mode fiber connections ● Add PoE+ devices such as PTZ cameras, access points, and IP phones to the network ● Operates as a Power Sourcing Equipment (PSE) on the copper side, supplying 30W of power ● Smart plug-and-play installation. No reconfiguration is needed to add new devices to the network ● The copper port supports full duplex, automatic MDI/MDI-X, and auto-negotiation ● Immediately notifies of link issues on the fiber side with link loss forwarding ● Compatible with 802.3 af/at compliant PoE devices
Inquire About This Product
basic information
<Specifications> Operating Temperature: 0 to 50℃ Standards: IEEE802.3af/at (PoE), IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3z/ab (1000BASE-T), IEEE802.3x full-duplex flow control, 1000BASE-SX Distance (Maximum): UTP side: 100m Fiber side (850nm multimode): 62.5/125μm: 160MHz: 220m, 200MHz: 275m, 50/125μm: 400MHz: 500m, 500MHz: 550m CE Certification: Obtained Connector: UTP side: RJ-45 (10BASE-T/100BASE-TX/1000BASE-TX) (1) Fiber side: SC pair (1) Power Supply: Internal power supply: Input: 100 to 240VAC, 47-63Hz, Power Consumption (Maximum): 35W Dimensions: 4cm (H) x 15.8cm (W) x 1.3cm (D) Weight: 0.6kg
Price range
P2
Delivery Time
Applications/Examples of results
For more details, please contact us.
catalog（3）
Download All Catalogs
News about this product（1）
Company information
Black Box, as a leading technology solutions provider in the industry, operates in 175 countries worldwide, including its headquarters in the United States, as well as North America, South America, Europe, and the Asia-Pacific region. ■ KVM switches, KVM extenders ■ AV and multimedia equipment, digital signage ■ Industrial Ethernet, media converters, extenders ■ Office network products ■ LockPORT security LAN cables ■ Network product installation services Black Box realizes the most cost-effective and optimal systems. We assist from the assessment and planning of the desired system to design, equipment procurement, implementation of monitoring, management, and support. We propose optimal safety management, video management, environmental monitoring, remote control, and power management measures.
