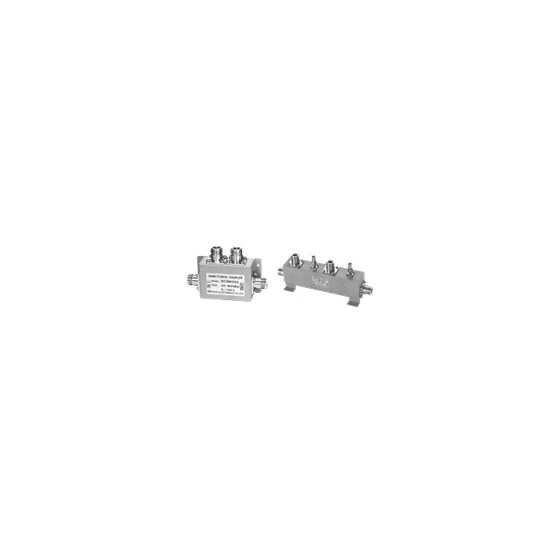

It is an optimal directional coupler for cable transmission lines and equipment integration.
At Stack Electronics Co., Ltd., we offer a wide range of products including coaxial switches and coaxial splitters widely used in high-frequency equipment, as well as high-frequency filters, combiners, and amplifiers that require reliability. Directional couplers are high-performance products that branch off a constant level of signal on a signal transmission line in a wide bandwidth, particularly without reducing the trunk line level (low loss type). They are optimal for cable transmission lines and equipment integration. 【Adoption Method】 ○ DCN, DCB Type: Transformer type adopted ○ BSC Type: Microstrip line adopted For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Common Specifications】 ○ Operating Temperature Range: 0℃ to +50℃ 【Lineup and Frequency Range (MHz)】 [N-Type 2-Way Splitter] ○ DCN2502(C): 40–250 ○ DCN9002(C): 40–900 ○ BSC1802: 900–1,800 [N-Type 4-Way Splitter] ○ DCN2504(C): 40–250 ○ DCN9004(C): 40–900 [BNC Type 2-Way Splitter] ○ DCB2502(C): 40–250 ○ DCB9002(C): 40–900 [BNC Type 4-Way Splitter] ○ DCB2504(C): 40–250 ○ DCB9004(C): 40–900 ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
