Reduce costs and achieve mass production.
By systematizing high-quality painting with the painting robot "Line Dancer" on the Dragon Line, we achieve low-cost mass production. We have introduced an accumulation mechanism to the conveyor line, and by adopting this product, we reduce the booth's air supply and exhaust volume by approximately 45%. This improves production efficiency while also miniaturizing the equipment. Please feel free to contact us when you need assistance. *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information

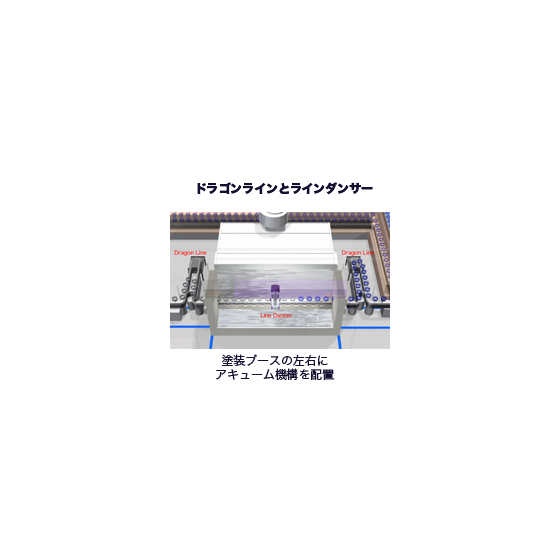

Takubo's original painting conveyor line, "Dragon Line," features an accumulation mechanism that allows for a portion to remain in front of and behind the painting booth, temporarily stopping the line in the painting booth section. As the length of the painting booth increases, the exhaust air volume also increases, which in turn raises costs. By temporarily stopping the line in the painting booth, the booth width can be minimized to the necessary length, thereby reducing energy costs such as exhaust costs. This helps to lower painting costs and enables mass production.
Price range
Delivery Time
Applications/Examples of results
This is a painting conveyor line specifically designed for the Soft Boy Pro Super Spindle and Line Dancer series. It is compatible with mobile phones, smartphones, and mobile communication devices.
Detailed information
-
The width of the painting booth is reduced by approximately 46%. A comparison of robots equipped with 12 guns from the Soft Boy Pro series shows that introducing the Dragon Line reduces the width of the painting booth by about 46%.
-
Approximately 23% reduction in air conditioning energy costs Comparison of air conditioning energy costs using 12 painting robots Before and after the introduction of the Dragon Line, the systematization of the line dancer and the Dragon Line results in approximately a 23% reduction in air conditioning energy.
catalog（1）
Download All Catalogs
Company information
Takubo Engineering has established technology in painting and is independently developing a painting system that reduces running costs and provides profit benefits. We are developing solutions to simultaneously meet the demands of improving quality, lowering painting costs, and increasing profits. Thinking because it doesn't exist in the world, Takubo Engineering independently considers systems that meet the needs of painting management. We are also pursuing better ways of painting systems. ◎ We independently develop and sell painting-specific robots and painting systems. In addition to the hanging mobile explosion-proof line dancer, we have newly added the autonomous explosion-proof swan robot to our lineup. ◎ Main products: Explosion-proof painting robots: line dancer, swan Hot air drying furnace: Drytech Painting booth: Oil booth Conveyor line: Dragon line Explosion-proof paint supply system: Syringe pump system Automatic spray gun: Scotch gun Small explosion-proof AC servo motor Hose-less robot IH drying system Clean room dedicated to painting Special ceramics paint UV painting system and drying system, other painting systems
