Can cut without selecting the material to be cut! No need for replacement hassle, and lifespan is extended.

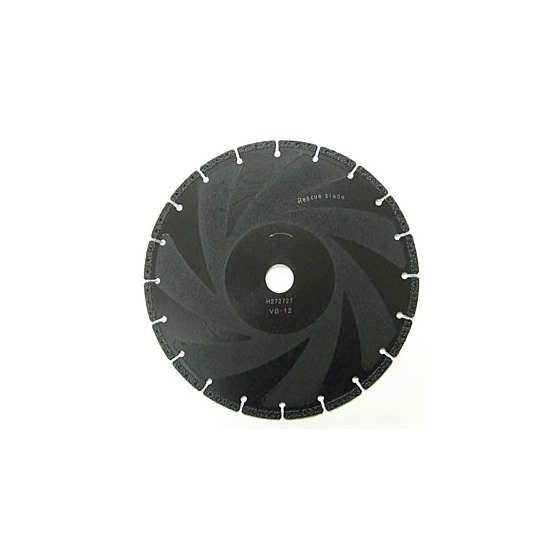

The dry diamond blade multi-blade can cut various materials without selection, and compared to resin blades, it requires no replacement hassle and has an extended lifespan. By welding the diamonds, the retention power of the diamonds is improved. The electroplated diamonds on the sides accelerate cutting speed, reduce clogging, and enhance safety. It can be used for internal coated cast iron pipes, copper pipes, rebar, angles, automobile bodies, thin steel plates such as shutters, rubber caterpillars, hydraulic hoses, tires, polyethylene pipes, PVC pipes, FRP, glass, utility poles, concrete materials like piles, stone materials, and for disaster rescue purposes. For more details, please contact us or refer to the catalog.
Inquire About This Product
basic information
【Features】 ○ Ideal for use with air cutters ○ Usable with electric tools as well ○ Can cut various materials without selection ○ Compared to solenoids, it requires less effort and has a longer lifespan ○ Diamond bonding improves diamond retention ○ Side electroplated diamonds accelerate cutting speed → Less clogging and increased safety 【Specifications】 [VB-4] ○ Nominal diameter (Φ): 100 ○ Blade thickness (mm): 2.4 ○ Blade height (mm): 6 ○ Center hole diameter (mm): 20 [VB-5] ○ Nominal diameter (Φ): 125 ○ Blade thickness (mm): 2.4 ○ Blade height (mm): 6 ○ Center hole diameter (mm): 22 [VB-7] ○ Nominal diameter (Φ): 180 ○ Blade thickness (mm): 2.6 ○ Blade height (mm): 8 ○ Center hole diameter (mm): 25.4 [VB-12] ○ Nominal diameter (Φ): 300 ○ Blade thickness (mm): 3.0 ○ Blade height (mm): 8 ○ Center hole diameter (mm): 30.5 [VB-14] ○ Nominal diameter (Φ): 350 ○ Blade thickness (mm): 3.2 ○ Blade height (mm): 8 ○ Center hole diameter (mm): 30.5 ● For more details, please contact us or refer to the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
【Uses】 ○ Internal membrane cast iron pipes, copper pipes, rebar, angles, automobile bodies, thin steel plates such as shutters, rubber tracks, hydraulic hoses, tires, polyethylene pipes, PVC pipes, FRP, glass, utility poles, concrete materials such as piles, stone, etc., for disaster rescue purposes. ● For more details, please contact us or refer to the catalog.
