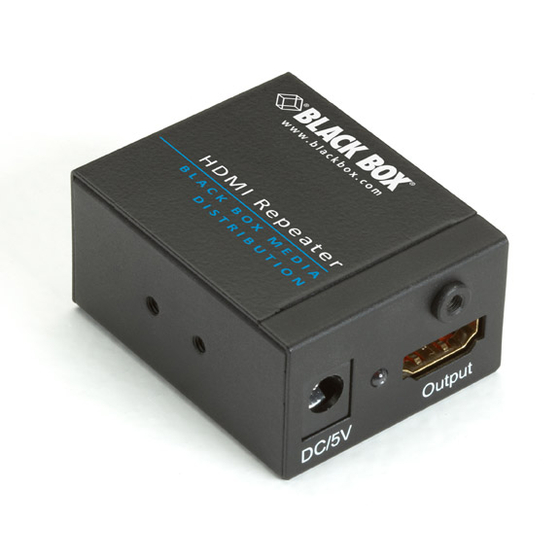

Repeater that exceeds the distance limit of HDMI
● Re-generates digital video/audio signals and transmits them via high-speed HDMI cable ● Supports 1080p Full HD video for 3D displays ● Ensures a bandwidth of 340MHz/3.4Gbps per channel (10.2Gbps across all channels) ● Supports 12-bit deep color depth per channel (36-bit across all channels) ● Transmits uncompressed audio like LPCM as well as compressed audio such as DTS Digital, Dolby Digital, and DTS-HD ● 8-stage compensation that provides optimal adjustment even with varying cable lengths. Easy setup with just a switch from 1m to 35m ● HDCP passthrough functionality, useful for protected content like Blu-ray players ● Robust metal housing that is less susceptible to EMI interference ● Can operate with power supplied via HDMI interface ● Uses an external power supply (VR-HDMI-PSU) for long-distance extension
Inquire About This Product
basic information
<Specifications> Maximum Resolution---1920×1080p/1920×1200 User Control---8-position DIP switch for cable characteristic correction Video Amplifier Bandwidth---3.4Gbps/340MHz Connectors---Input: HDMI female (1) Output: HDMI female (1) LED Lamps---Power (1), Activity (1) Power Supply---HDMI interface or external power supply (VR-HDMI-PSU) Dimensions & Weight---3.5cm (H) × 5cm (W) × 4cm (D), 0.1kg
Price range
P1
Delivery Time
Applications/Examples of results
For more details, please contact us or refer to the catalog.
catalog（1）
Download All Catalogs
