We offer a 4-port HID model and a model that also supports USB 2.0.
● Extends DVI-D/USB signals up to 140m using CATx cables ● Operates CPU or KVM switch from a distance using USB keyboard/mouse/DVI monitor ● Supports a resolution of 1920×1200 (24-bit color) even at maximum extension distance ● Achieves DVI/USB extension with inexpensive CAT5/5e/6 cables (shielded cables recommended) ● Allows for the placement of the CPU and KVM console apart without degrading the image quality of the DVI-D monitor ● Suitable for extending high-quality video to workstations in multimedia studios and high-end video systems ● Useful for adding computer operation/access to many KVM switches ● Can be operated locally or remotely. The local DVI-D connector can be used while connecting the KVM console to the PC and using the remote KVM ● Compact design takes up little space on a desk and can be pushed to the back of a rack ● Transmits USB and 1920×1200 DVI video signals over two cables using compression technology ● Ideal for applications that require clear images for video production, medical use, R&D, and process management, taking advantage of high video quality
Inquire About This Product
basic information

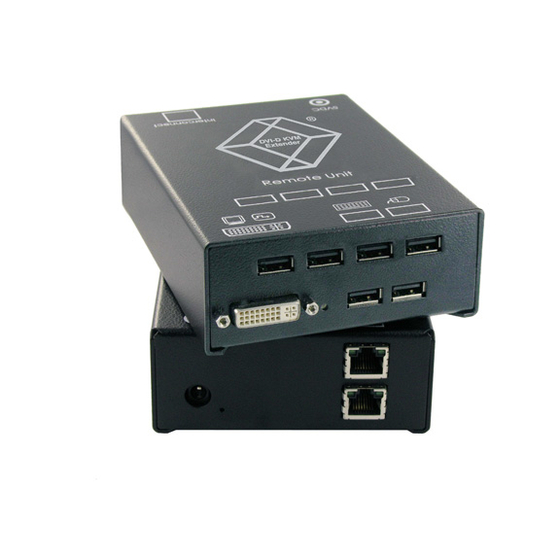

● The remote unit implements 4 USB 2.0 compatible ports and 2 USB HID compatible ports. ● It can connect USB 2.0 peripherals such as broadband storage devices and printers, as well as HID devices like tablets. <Specifications> Maximum resolution --- 1920×1200 @ 60Hz Maximum distance --- 24AWG: 140m, 26 or 28AWG: 70m Video format --- DVI-D single link Connectors --- [Local unit (CPU/server side)] DVI-D female (video) (2), USB type B female (1), RJ-45 (CATx interconnect) (2) [Remote unit (KVM side)] DVI-D female (video) (1), USB model is 2.0 (4) + HID (2), HD model has HID (4), RJ-45 (CATx interconnect) (2) LED indicators --- Power, Video OK, Data Error, Link Status (4) Power --- Input: 90–240VAC, 47–63Hz, auto-detection Dimensions & weight --- Common for each unit: 4.3cm (H) × 10.3cm (W) × 14.3cm (D), 0.6kg
Price range
P4
Delivery Time
Applications/Examples of results
For more details, please contact us or refer to the catalog.
