Waterproof round connector [CE01 (D69)] solder type IP67
CE01 (D69) DDK Corporation Fujikura
No expensive crimping tools are needed for solder contacts. Ideal for small-scale introduction! One-touch lock connectors with excellent environmental resistance. Built-in ground terminal for protection circuits.
■Compliant with JIS-B-6015. ■UL and C-UL certified (File No. E72124) ■Built-in ground terminal for protective circuits with continuity to the shell ■Sound during engagement lock allows for more reliable engagement confirmation ■Compatible with JAE's "JL05" series 【Speedy Shipping】 We have stock available in-house, enabling us to achieve the shortest delivery time with shipments as early as the next day. We also accommodate urgent requests. *Please consult us separately for large volume inquiries.
Inquire About This Product
basic information
【Features】 This connector has excellent performance in terms of waterproofing, coupling method, and wiring method. It incorporates a grounding terminal for protection circuits that is connected to the shell, and it is a solder contact type that also provides IP67 dust and water resistance when mated. Using a pull-out tool allows for easy circuit changes and corrections of miswiring. The coupling is done using a bayonet lock method, with five positioning keys arranged at the coupling part to prevent incorrect mating. Additionally, a reliable locking confirmation can be achieved through the coupling sound. It is compatible with the JL05 series from JAE (Japan Aviation Electronics Industry, Limited). This connector complies with JIS-B-6015. Our company keeps all types of connectors in stock, enabling us to achieve short delivery times. □ For more details, please refer to the catalog.
Price information
Please contact us each time.
Delivery Time
※We will ship the next day at the earliest, but since the stock status is constantly changing, please contact us in advance.
Applications/Examples of results
【Applications】 ■Machine tools ■Robot equipment ■Outdoor communication equipment For more details, please contact us.
Detailed information
-
【Related Product】CE01 A crimp contact type connector with a built-in earth terminal for protection circuits that are connected to the shell. Using a pull-out tool, circuit changes and corrections for miswiring can be easily performed. Contact sizes available are #16, #12, and #8.
Line up（9）
| Model number | overview |
|---|---|

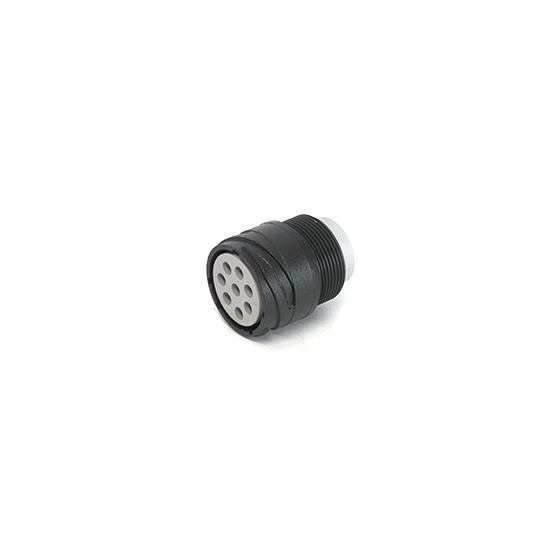

| CE01-1A-(D69) | Cable receptacle |
| CE01-2A-(D69) | Box receptacle |
| CE01-6A-(D69) | Straight plug |
| CE01-8A-(D69) | Angle plug |
| CE3057 | Waterproof cable clamp |
| CE01RC-RA | Rubber cap for receptacle |
| CE01RC-D | Metal cap for receptacle |
| CE01PC-RA | Rubber cap for plug |
| 357J | Contact extraction tool |
catalog（2）
Download All Catalogs
