High-quality functional water can be easily made.
*Now recruiting agents* The applications are diverse, including cleaning, sterilization, aquaculture, and cultivation, which are enhancing productivity. Due to its excellent cost-effectiveness, it is an ideal item for differentiation from competitors.
Inquire About This Product
basic information
The stationary type mixers "Nano Blender" and "Micro Blender" (Patent No. 5431573) can generate ultra-fine bubbles. Microbubbles average 20 microns with 40,000 bubbles/ml, and ultrafine bubbles at 0.08 microns with 800 million bubbles/ml have been proven to be important physical properties for creating functional water. The surface tension is also reduced, enhancing permeability. The processing flow rate is 1L/min to 30L/min (performance of one nozzle). If more than 30L/min is required, it is possible to achieve high flow rates by arranging multiple nozzles in parallel.
Price information
Please contact us. In this class, we will customize at a reasonable price.
Delivery Time
P4
※Delivery in about 2 weeks for standard specifications.
Applications/Examples of results
Microbial activity / Land-based aquaculture and cultivation / Reduction of surface tension / Cleaning and grinding machining / Generation of active species / Sterilization, oxidation prevention / Washing of cut vegetables / Promoting blood circulation / Carbonated bath and shower
Detailed information
-
Generate nanobubbles using oxygen gas as a raw material. High-concentration dissolved oxygen water can be produced instantly and remains in the water for a long time, making it widely used in microbial purification systems for land-based aquaculture. It is also effective for promoting fish growth and disease prevention. There are proven results in both fully closed aquaculture and flow-through aquaculture systems.
-
Microbubbles with an average particle size of 20μ and a cumulative concentration of 40,000 pieces/ml have a significant floating separation effect, adsorbing contaminants and slowly rising to the water surface. The separated contaminants are removed by overflowing while circulating the water, thereby purifying it.
-

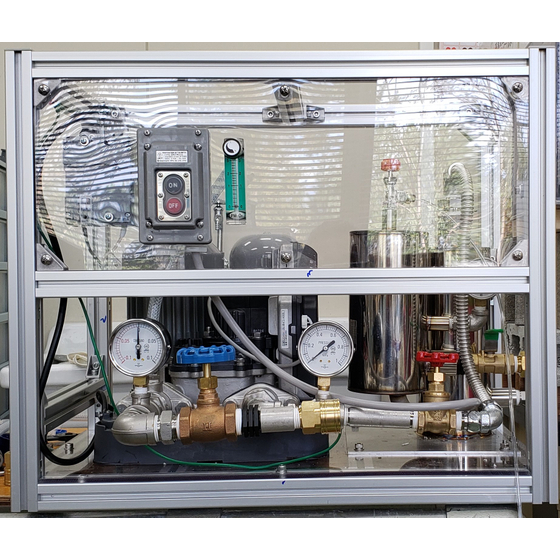

Basic model of a gas-liquid mixing device that generates functional water. Equipped with casters for easy mobility. Can store a pump and carbon dioxide gas cylinder. Ideal for foot bath corners, beauty salons, and head spas.
-
It can be easily installed with a direct connection type coolant piping. Cutting and grinding efficiency will increase. Since the surface tension decreases, it can also suppress the overflow of bubbles.
catalog（1）
Download All Catalogs
Company information
Our research and development office is located in the Niigata University Industry-Academia Collaborative Research Building. The functional water generation device is permanently installed, so you can experience it. We specialize in customization, allowing us to provide simple and affordable devices. We also offer demonstrations of equipment maintenance training.
