Easy operation! Excellent momentary interruption detection capability!

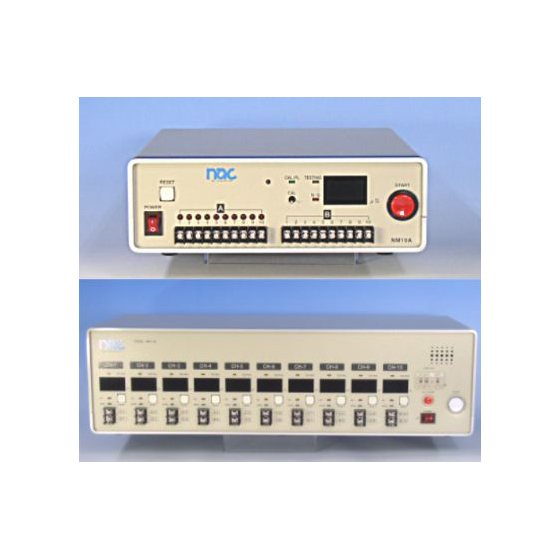

The NM10A momentary disconnection tester is capable of testing momentary disconnections for up to 10 circuits. It automatically determines areas without wiring and disconnection points. The NM10A judges a disconnection as NG (not good) when a momentary disconnection of 0.1μsec or more occurs and displays the initially detected disconnection width on a 7-segment LED. It also comes standard with a calibration pulse output. The NM11B operates completely independently for each circuit, unaffected by NG occurrences in other circuits, and displays the momentary disconnection width for each circuit on separate 7-segment LEDs. Additionally, it allows for the setting of momentary disconnection detection sensitivity (width) and judges disconnections that exceed the set value. For more details, please download the catalog.
Inquire About This Product
basic information
【Features】 ○ Capable of testing momentary interruptions for up to 10 circuits ○ Automatically determines areas without wiring and areas with disconnections ○ NG judgment for momentary interruptions of 0.1μsec or more (NM10A) ○ Displays the initially detected momentary interruption width on a 7-segment LED (NM10A) ○ Standard equipped with calibration pulse output (NM10A) ○ Each circuit operates completely independently, unaffected by NG occurrences in other circuits (NM11B) ○ Displays the momentary interruption width for each circuit on separate 7-segment LEDs (NM11B) ○ Momentary interruption detection sensitivity (width) can be set, judging interruptions above the set value (NM11B) ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please refer to the catalog or contact us.
Company information
Nack Corporation is a specialized manufacturer of electrical testing equipment for wire harnesses, connectors, and cables. We handle everything in-house, from planning to development, design, manufacturing, sales, and after-sales support for harness testers. We engage carefully with each client, proposing the optimal harness testing equipment tailored to their environment, industry, and the cables and harnesses they produce. By providing comprehensive support from planning to implementation and subsequent maintenance, our know-how and technical capabilities evolve daily, allowing us to offer even better products and services. Our in-house product, the "nacman series" harness tester, includes a wide range of options, from harness checkers capable of continuity testing and momentary disconnection testing to harness multi-testers that can perform continuity testing, resistance testing, withstand voltage testing, insulation resistance testing, and momentary disconnection testing all in one device. We also offer a series of momentary disconnection testers widely adopted by connector manufacturers. To meet customer demands, we can customize standard testers or manufacture special testing equipment. The nacman series has received high praise in Japan and around the world.
