For the production of a wide variety of monofilaments such as small lot production, ultra-fine threads, and electrostatic threads!

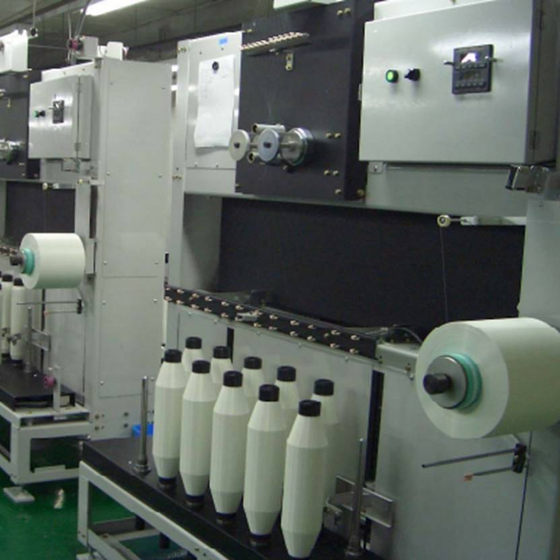

The "KA-524OF" is a machine that produces filament yarns by splitting raw yarns made from materials such as nylon and polyester into one (monofilament) or several strands. 【Features】 - Suitable for small lot production and a wide variety of monofilament production, including ultra-fine yarns and electrostatic yarns. - Equipped with spindles of 12 bobbins on one side (KA-524 OF) or 16 bobbins on one side (KA-532 OF) (24 or 36 spindles on both sides). - Capable of splitting yarns up to 12 or 16 divisions. - Can split not only FDY but also false twist yarns. - The R side and L side of the machine can be produced under different conditions. - Equipped with yarn length counters on both sides to maintain yarn uniformity. - Winding bobbin size is Φ50×420mm, and it also supports winding onto paper tubes. - Uses an overfeed roller to adjust and stabilize winding tension. *For more details, please request materials or view the PDF data from the download. *Factory tours are also available.
Inquire About This Product
basic information
<Main Specifications (Partial)> ■Dimensions & Weight: 《Weights: 24・32》 Height: 2,967mm Length: 25,820mm Width: 2,174mm ■Parent Yarn for Fiber Splitting: Parent yarn for fiber splitting Polyester and Nylon 8 filaments - 12 filaments (KA-524 OF) Polyester and Nylon 8 filaments - 16 filaments (KA-532 OF) ■Splitting Yarn: 15 Denier / 1 f or 30 Denier / 2 f 20 Denier / 1 f or 40 Denier / 2 f 30 Denier / 1 f ■Splitting Tension: 0.6 g/denier - 1.0 g/denier Controlled by automatic tension constant device *For details, please request materials or view the PDF data from the download.
Price information
-
Delivery Time
Applications/Examples of results
The uses of filament yarns are diverse, ranging from women's dresses and interior curtains to various industrial materials. A lightweight fabric known as organza can be considered a representative example of yarns made from textured filament.
