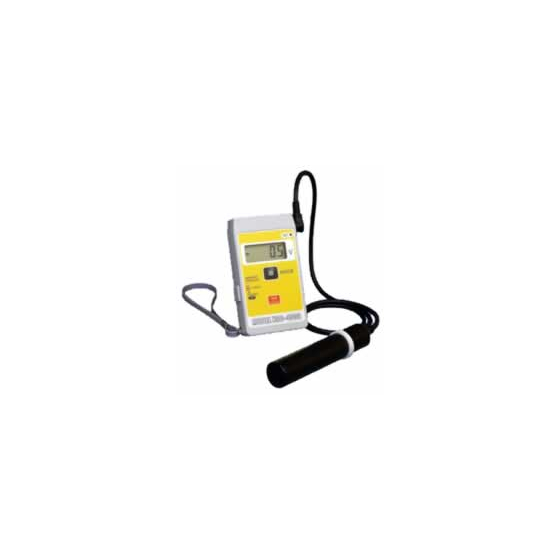

Body Potential Meter / Model Number MB16SD-4000K
Electronic devices and metal tools held by humans have individual capacitance to ground and are charged at the potential of the human body. When the charged electronic device touches the ground or the metal tool touches the electronic device, a transient current with a high peak current flows rapidly, causing a malfunction. By using a body potential meter, it is possible to accurately measure the potential of the human body and instantly determine whether the electronic device will be damaged at that potential. Additionally, it is possible to know how much static electricity measures such as conductive floors, anti-static mats, anti-static shoes, and wrist straps reduce the human body's potential.
Inquire About This Product
basic information
Electronic devices and metal tools held by humans have individual ground capacitance and are charged at the human body potential. When the charged electronic device touches the ground or the metal tool touches the electronic device, a transient current with high peak current flows rapidly, causing a malfunction. By using a body potential meter, it is possible to accurately measure the body's electric potential and instantly determine whether the electronic device will be damaged at that potential. Additionally, it is possible to understand how much static electricity measures such as conductive floors, anti-static mats, anti-static shoes, and wrist straps can reduce the human body potential.
Price information
-
Delivery Time
Applications/Examples of results
■Specifications ● The probe allows for easy measurement of the human body's electrostatic potential by holding it in hand. ● Achieves a high resolution of ±0.1V. ● Can measure over a wide range. ● Switch between peak hold measurement and continuous measurement. ● By using a data logger in conjunction, it is possible to continuously record changes in human potential during each action of the operator. ● Easy evaluation and training for the operator's electrostatic countermeasures. ● Built-in detection sensor failure diagnosis circuit, which displays errors when a failure occurs. (Patent) ● Equipped with a sleep mode function to prevent battery drain due to forgetting to turn off the power.
