15W class medical AC adapter. For power selection and specification consultation based on requirements.

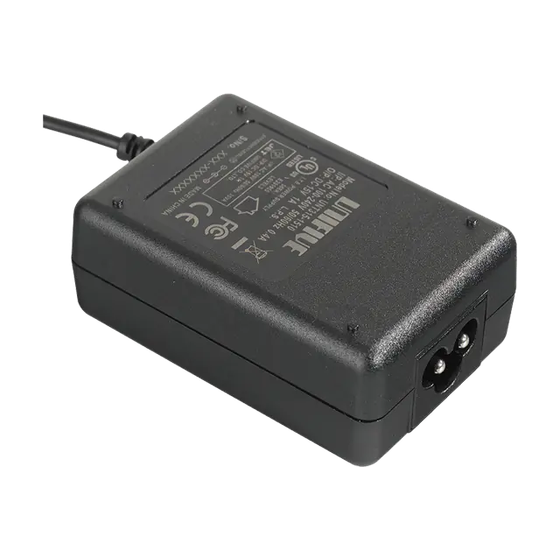

UMDNB3050 is a 15W AC adapter specifically designed for medical devices, featuring a compact design with a 3-pole AC inlet. It complies with 2MOPP for patient protection and 2xMOOP for operator protection. Additionally, it has received IEC60601-1 and PSE certifications. You can consult us for power selection, specification adjustments, and customizations based on the standard model to meet your requirements. Availability, specifications, quantities, and delivery times will be confirmed individually. For detailed conditions and product catalogs, please check the official product page linked in the related links.
Inquire About This Product
basic information
【Standard Specifications】 Power Rating: 15W Input Voltage: 90V～264V DC Output Ratings: 5.0V/2.5A 5.9V/2.3A 5.9V/2.5A 9.0V/1.6A 12.0V/1.2A 15.0V/1.0A 18.0V/0.8A 18.0V/0.83A 24.0V/0.65A Dimensions: L:75.0 W:50.6 H:29.8/mm (IEC 320 C6) Standards (as displayed on the official page): PSE, CB, CE, DOE VI, FCC, UL-parts, UKCA For specific model numbers, output conditions, and applicable ranges, please inquire individually. The specifications listed are reference specifications for the standard model.
Price information
Individual estimates based on specifications, quantities, and custom details.
Delivery Time
※It varies depending on quantity, specifications, and evaluation criteria. Please consult us individually.
Applications/Examples of results
To customers considering the selection and introduction of medical AC adapters: Please provide the required specifications such as output voltage and current, operating environment, terminals and cables, and necessary standards. We can discuss specification adjustments, customizations, sample evaluations, and quotes. We will confirm the feasibility on a case-by-case basis.
Company information
- Unifive, specializing in AC adapters and switching power supplies, offers high-performance, compact, and low-cost AC adapters and switching power supplies to electronics companies in Japan and around the world with an industry-leading lineup. We flexibly accommodate orders from small to large lots. We can propose from general models to fully customized solutions. We create approximately 1,500 sample models annually based on orders, and we ship about 15,000 units of these as samples each year. - Various factory certifications obtained - Safety standards obtained in various countries - Medical standards obtained
