60W class peak load compatible AC adapter. For power selection and specification consultation based on requirements.

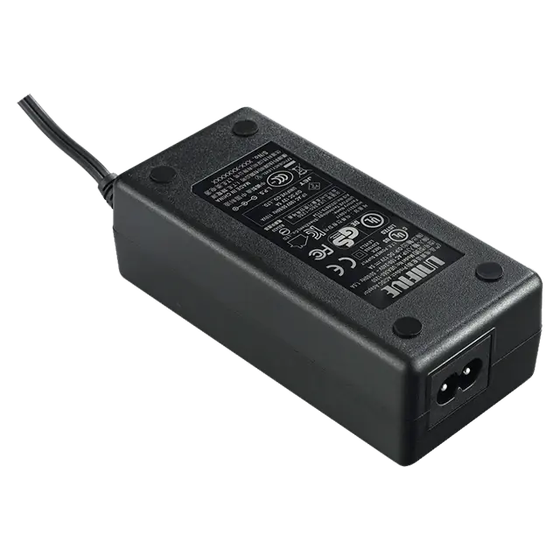

UNDEI3060 P Series Peak Load 11 Seconds Compatible Product A 60W AC adapter that supports peak loads. This model is an inlet type that can handle peak loads for 11 seconds. It can be used for various devices such as industrial printers, IoT-related equipment, network devices, pumps, etc. It is an ideal product for motor-driven devices. Universal type. This product supports peak currents approximately twice the rated current. Starting from the standard model, we can discuss power selection, specification adjustments, and customization according to your requirements. Availability, specifications, quantities, and delivery times will be confirmed individually. For detailed conditions and product catalogs, please check the official product page linked in the related links.
Inquire About This Product
basic information
【Standard Specifications】 Power Rating: 60W Input Voltage: 90V–264V DC Output Ratings: 12.0V/5.0A 15.0V/4.0A 19.0V/3.15A 24.0V/2.5A Dimensions: L:113.5 W:54.0 H:36.3/mm (IEC 320 C8) Standards (as displayed on official page): cULus, PSE, CB, CE, DOE VI, FCC, UKCA For specific model numbers, output conditions, and applicable ranges, please inquire individually. The specifications listed are for reference for the standard model.
Price information
Individual estimates based on specifications, quantity, and custom details.
Delivery Time
※It varies depending on quantity, specifications, and evaluation criteria. Please consult us individually.
Applications/Examples of results
To customers considering the selection and introduction of peak load response AC adapters: Please provide the required specifications such as output voltage and current, operating environment, terminals and cables, and necessary standards. We can discuss specification adjustments, customizations, sample evaluations, and quotes. We will confirm the feasibility on a case-by-case basis.
Company information
- Unifive, specializing in AC adapters and switching power supplies, offers high-performance, compact, and low-cost AC adapters and switching power supplies to electronics companies in Japan and around the world with an industry-leading lineup. We flexibly accommodate orders from small to large lots. We can propose from general models to fully customized solutions. We create approximately 1,500 sample models annually based on orders, and we ship about 15,000 units of these as samples each year. - Various factory certifications obtained - Safety standards obtained in various countries - Medical standards obtained
