For air conditioning units with high static pressure that cannot be accommodated by standard A-trap products!

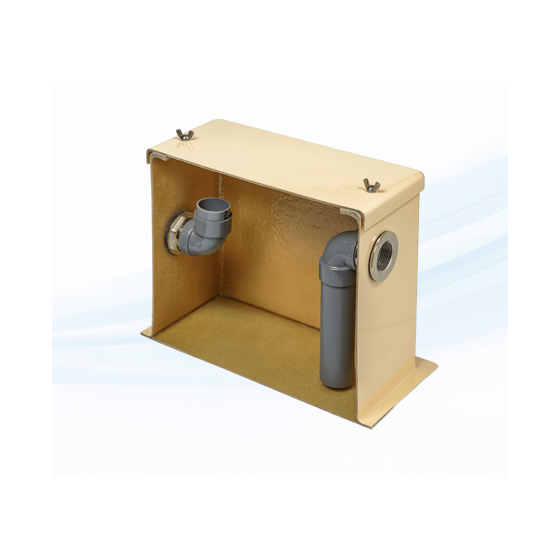

The high static pressure drain trap is an FRP drain trap designed for high static pressure air conditioning units installed in hospitals, research institutes, and factories. The standard model (A-Trap P type) can handle a static pressure of up to +1450Pa, but by significantly increasing the water seal height, it can accommodate: Medium-sized FRP body: total static pressure 0 to +2000Pa Large-sized FRP body: total static pressure 0 to +3000Pa. *The photo shows the medium-sized FRP body. Additionally, it can flexibly accommodate changes in the positions of the inlet and outlet, allowing for customization to fit the installation environment. By filling water up to the top of the outflow side components inside the body, it prevents air from escaping by forming a water seal. *It is necessary to regularly replenish water during periods when no drainage occurs. 【Features】 ■ Rust-proof and rot-proof FRP body ■ Significantly increased water seal height compared to conventional products ■ Height adjustment of inlet and outlet is possible
Inquire About This Product
basic information
【Features】 ■ Rust-proof and rot-proof FRP body ■ Significantly increased water seal height compared to conventional products ■ Adjustable height for inflow and outflow 【Our Strengths】 Kondo FRP is a technology development-oriented company that was the first in Japan to develop a dedicated drain trap (A-trap) for air conditioning drainage. As professionals in FRP, we provide products that meet customer needs based on 50 years of trust and achievements. With over 20,000 delivery records, we are globally expanding, primarily in Southeast Asia, delivering the technology and reliability we have cultivated over many years.
Price range
Delivery Time
Applications/Examples of results
【Main Installation Locations】 ■ Air conditioning units with a total static pressure of +1450 Pa or higher Examples of facilities: hospitals, research institutes, factories, etc. *For more details, please download the PDF or feel free to contact us.
