Reduce the effort of inserting into the measuring tank and address sludge adhesion! With its inclined design, you can instantly read the flow rate just by looking into it.

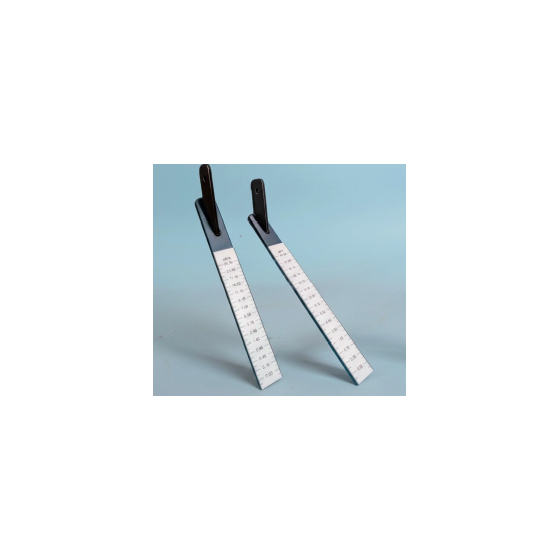

The "High Visibility Inclined Flow Measurement Device" is a measuring instrument with an incline designed to make flow management overwhelmingly easier for measuring tanks. When sludge adheres to or deteriorates and peels off the scale board of the measuring tank, it becomes difficult to read the flow rate. This product features a cleverly designed incline that allows the scale to face forward even from above the pit or from a short distance away. There is no need to insert the scale board into the tank for measurement during inspections; you can simply look down from above for accurate readings. Custom options are also available for measuring tanks. 【Features】 ■ Reduces the hassle of inserting into the measuring tank ■ Measures against sludge adhesion ■ Inclined design allows for easy viewing from above ■ Enables accurate readings ■ Custom options available for measuring tanks *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■ Small scale 60 degrees: W95×H220mm, maximum measurement water volume 7.08m3/h ■ Small scale 90 degrees: W144×H209mm, maximum measurement water volume 12.24m3/h ■ Large scale 60 degrees: W136×H296mm, maximum measurement water volume 25.38m3/h ■ Large scale 90 degrees: W217×H281mm, maximum measurement water volume 43.32m3/h *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Main Installation Sites】 ■ Water meter side of the measuring tank ■ Sites where the scale plate inside the measuring tank has been lost due to annual use *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Based on over 40 years of know-how and technology as a manufacturer of components and equipment for wastewater treatment facilities, we offer proposals for facility improvements. 【Do you have any of these concerns?】 ◆ "I want to expand the facility or repair aging parts." ◆ "The deterioration of water quality is causing us to exceed wastewater discharge standards." ◆ "We are struggling with rising costs for chemicals and electricity." ◆ "I don't know how to manage the wastewater treatment facility." The Kansai Chemical Group is engaged in environmental business centered around water. Starting as a manufacturing company, we have cultivated solid technical skills, and each employee enhances their abilities, leading to the development of innovative products through refined sensitivity. We take pride in being Kansai Chemical Co., Ltd.
