Adopting a unique surface material! It combines the strength of steel with the properties of wood, ensuring that it does not break even during significant deformations caused by major earthquakes, while maintaining stable performance.

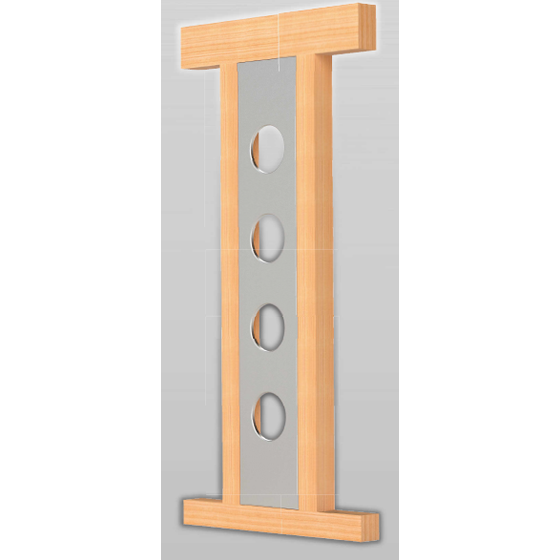

The "TN-WOLSH Burring Wall" utilizes a unique surface material that has undergone burring processing on a 1mm thick thin steel plate, merging the strength of steel with the characteristics of wood. It is a narrow resistance wall that maintains stable performance without destruction even during significant deformations caused by major earthquakes. It employs an open construction method that anyone can use, allowing for on-site cutting of the frame materials. The 1mm burring surface material can be nailed, and the frame materials and wooden structural materials can be screwed together, making the construction method simple and eliminating the need for special design. Additionally, it can be used in both wall-supported and floor-supported configurations, with two internal dimensions between the column materials: 350mm and 335mm. It can accommodate internal dimensions between horizontal members ranging from 1860 to 3340mm, making it suitable for various buildings, including residential and non-residential structures. 【Features】 ■ Wall strength equivalent to 6 times ■ Open construction method usable by anyone ■ Wide range of applicable situations *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Basic Components】 ■ Bearing surface material ■ Column material ■ Upper horizontal member ■ Lower horizontal member ■ Panel framework (frame material) *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■ Various buildings such as residential and non-residential *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
We are a manufacturer of construction hardware that firmly protects the "wooden houses" loved by the Japanese from earthquakes. We were the first in Japan to promote the Kuretec hardware method, making traditional wooden frame construction even more robust. Additionally, we boast the highest production volume in Japan for reinforcing hardware (Z-mark, C-mark) traditionally used in wooden house construction. Furthermore, our precut business for structural frames using the latest equipment is set to expand throughout the entire eastern Japan in the future. We have group companies in Tochigi Prefecture and Chiba Prefecture in Japan, as well as in China and Guam overseas, aiming for future development into a global company.
