Hokkaido Univ. Technology：Purification Methods for Single-Walled Carbon Nanotubes：HK25-002
High-purity,long SWCNTs with specific chirarity

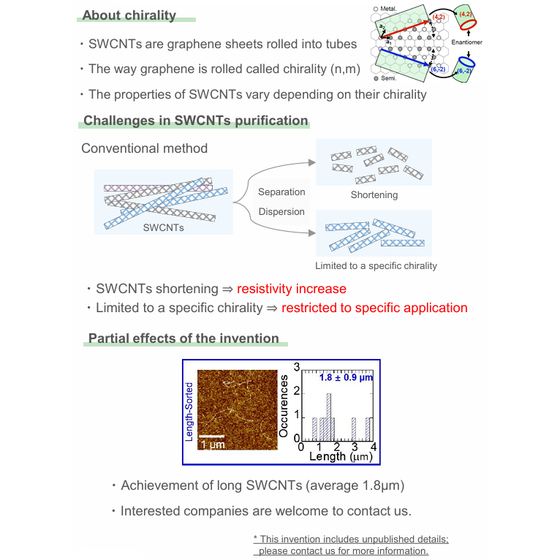

Single-walled carbon nanotubes (SWCNTs) are regarded as promising materials for next-generation electronics owing to their unique optical, electronic, and mechanical properties. Conventional synthesis methods such as laser ablation and arc discharge create SWCNTs with a broad mixture of chiralities, resulting in inconsistent device performance. Polymer wrapping and density gradient ultracentrifugation (DGU) are widely used for chirality separation, but polymer wrapping is limited to certain chiralities and DGU tends to shorten nanotube length, increasing resistance in electronic devices. We have developed a new dispersion and purification method that enables efficient separation of a wide variety of SWCNT chiralities—including enantiomers—while preserving tube length. The resulting high-purity, long SWCNTs allow the realization of advanced devices with high speed and sensitivity, expanding the possibilities for practical applications in electronics and sensing technologies.
Inquire About This Product
basic information
詳細は、お問合せ又はPDFをご覧ください。
Price range
Delivery Time
Applications/Examples of results
詳細は、お問合せ又はPDFをご覧ください。
