A stop unit that automatically stops the mixer when the mixer cover is removed.
Mixer Stop STP-100V

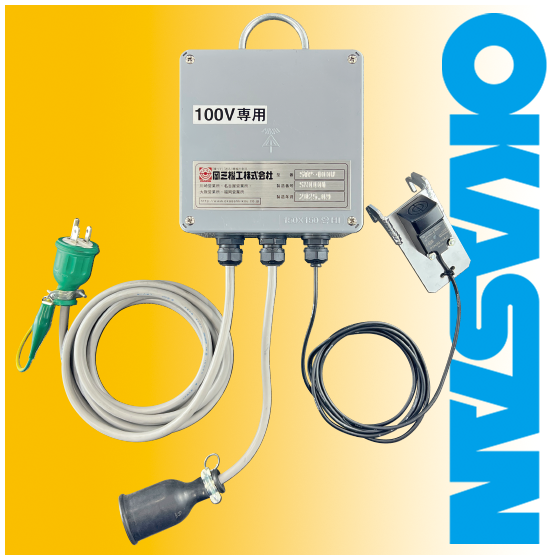

Mortar mixer stop unit STP-100V, which requires no processing and can be simply hung, placed, and connected.
■Simply hang the sensor unit on the mixer drum, place the mixer cover, and connect the power cord. If the mixer cover is removed from its designated position, the mixer operation will automatically stop. ■During operation, the detection dog protects the upper part of the sensor, so impacts from above do not directly hit the sensor. ■The inductive proximity sensor has a protection structure of IP67. It does not detect mortar, so it will not malfunction even if it adheres.
Inquire About This Product
basic information
Product Name: Mixer Stop Model Number: STP-100V Sensor Detection Distance: 0-8mm Power Supply Voltage: AC 100V There are combinations of compatible mixers and mixer covers. Please refer to the catalog for details.
Price range
P2
Delivery Time
P2
Applications/Examples of results
For those who are dissatisfied with the fact that the mixer does not stop running even when the mixer cover is removed!
catalog（1）
Download All Catalogs
Company information
We are deeply embedded in the construction and civil engineering industry through the manufacturing of machines that "mix" and "deliver" various cement-based and resin-based materials, as well as the sale of related products. Primarily focusing on mixers for mixing and pumps for delivery, we develop products with a site-oriented approach, such as flow meters that enhance the reliability of on-site mixed materials and wireless remote control units that improve work efficiency. We are a specialized manufacturer of mortar mixers, grout mixers, mortar pumps, and grout pumps. Mortar pumps are also referred to as squeeze pumps or tube pumps and are utilized in injection work, pressure delivery work, and spraying work. Our sales bases are located in Tokyo, Nagoya, Osaka, and Fukuoka, while design and manufacturing are conducted at our Osaka factory. Experienced sales personnel assist customers with product selection, specification discussions, and delivery.
