Structural Calculation Software Examples │ Steel Structure + Reinforced Concrete Structure University Facilities

The upper part of the building is planned with a pure frame structure made of steel, and the foundation is designed with pile foundations as an example.

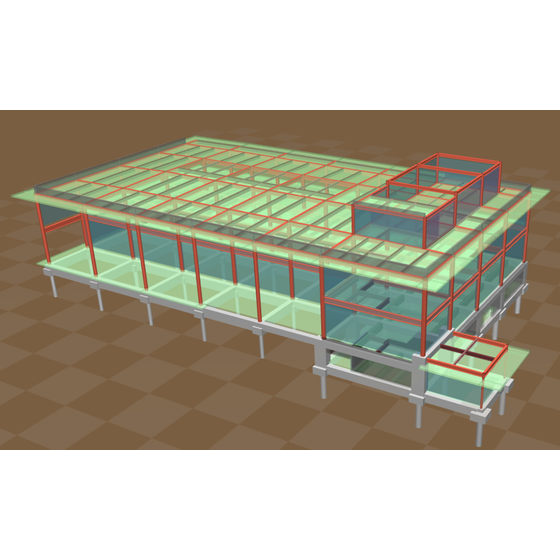

We would like to introduce an example of the integrated structural calculation software 'Super Build/SS7' for university facilities constructed with a combination of steel (S) and reinforced concrete (RC). This building is a three-story above ground (S) plus one basement (RC) university facility that takes advantage of the sloped and stepped construction site. Due to the slope and steps of the construction site, part of the structure is underground, and the underground portion is planned as a reinforced concrete structure with seismic walls in a frame structure. 【Example Overview】 ■ Use: University Facility ■ Structural Type: S + RC ■ Levels: 3 stories above ground, 1 basement (4 stories above ground structurally) ■ Design: Sanjugo Architectural Institute Co., Ltd. (Toyama Prefecture) *For more details, please download the PDF or feel free to contact us.
