Green laser: Sharp straight line pattern! Capable of projecting over long distances! [NETIS registered]
【NETIS Registration Number HK-240021-A】 Composed of a special filter that aligns the projection focus with the light source, battery, and the installation height and distance of the designed projector! This method is a technology that projects a light pattern onto the road surface, instantly visualizing the designated position of lane markings. It can be applied to sites requiring straight line marking work, such as road construction lane marking. Since marking work is no longer necessary, improvements in economy, process, safety, and workability are expected. 【Application Conditions】 ■ Natural Conditions: No restrictions due to wind ■ Site Conditions - Usable in environments with brightness below 200 lux (evening to early morning) - In daytime with brightness exceeding 200 lux, visibility of the pattern light decreases ■ Regions where technology can be provided: No restrictions on regions where technology can be provided 【Application Range】 ■ Applicable Range: Curves with a distance of less than 100m between the start and end points (BC to EC) of straight and curved roads ■ Particularly effective application range - Roads with long straight sections - Environments with low illumination such as night work or inside tunnels where marking lines are difficult to see ■ Inapplicable Range: Curves with a distance of 100m or more between the start and end points (BC to EC) *Please feel free to contact us.
Inquire About This Product
basic information
This construction method utilizes the DNP High Visibility Pattern Light (a Class 1 laser product based on JIS C 6802:2014 and IEC 60825-1:2014, Section 4.4), which is classified as Risk Group 2 (IEC 62471:2006). Size/Weight: 193mm × φ50mm / 450g *DNP High Visibility Pattern Light Operating Environment: 0℃ to 35℃ Storage Temperature/Humidity: -20℃ to +40℃ / 65% ± 20% non-condensing Dust and Water Resistance: Equivalent to IP65 Power Supply: DC 5V Input Specification: 5V ± 10% Power Consumption: Approximately 3.0W Light Source: Green Laser Diode Projection Line Width: 0.02m to 0.04m
Price range
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
It can be used for all marking work done on surfaces, etc. It can be used for guiding the line of sight for construction machinery, vehicles, pedestrians, etc. (Can be used in work environments with brightness below 200 lux) - Marking line construction - Paving work - Snow removal and snow clearance work - Traffic guidance
Detailed information
-
It is possible to project linear patterns of over 100 meters.
-
It can be used in environments with brightness below 200 lux (from evening to early morning).
-
The device is lightweight and compact, making it easy to install on tripods or construction machinery. It can be lit for over 8 hours with a mobile battery. This method utilizes the "DNP High Visibility Pattern Light" from Dai Nippon Printing Co., Ltd.
-

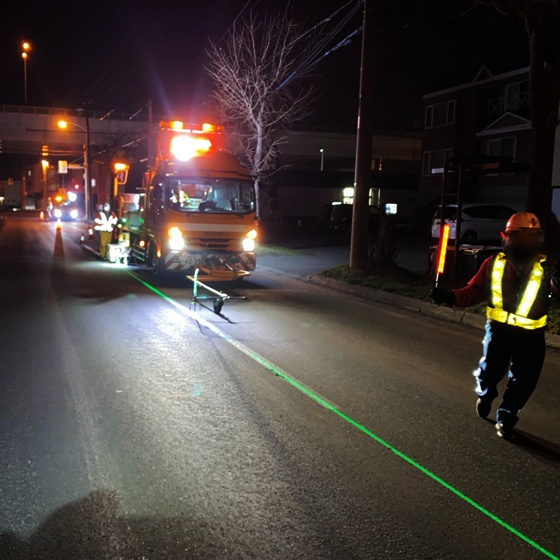

It can be installed on a paint marker vehicle and used for marking out lane lines.
-
It can be used for all marking work done on surfaces, etc.
-
It can be used for safety measures in snow removal and snow disposal operations.
-
It was installed on the asphalt finisher during the paving work.
-
You can visualize the specified position.
