Labor-saving! Waterproof sleeve for underground outer walls (underground beams) pipe-in-sleeve.

PIS

EPJ

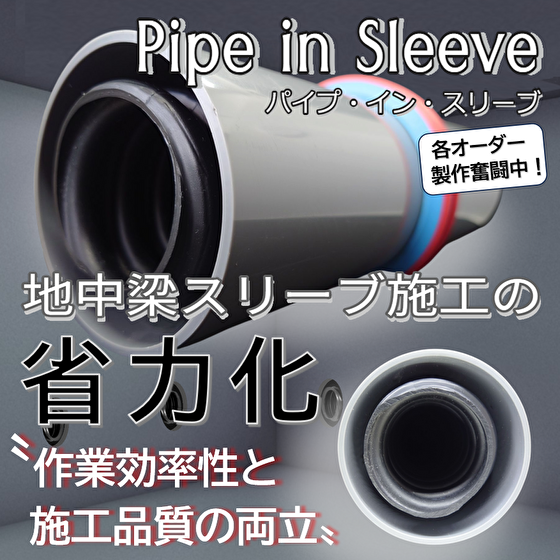

[Official Release] Waterproof Sleeve for Underground Walls "Pipe-In-Sleeve" (Abbreviated as PIS) Reducing Labor at Construction Sites! Enhancing Waterproof Performance of Buildings!

■Recently, our "Pipe-in-Sleeve," showcased at the JECA Fair 2025, is officially released with great anticipation.■ In the underground wall section (underground beam sleeve), we have pre-treated the PVC sleeve and the outer space (gap) of the FEP with "waterproof treatment" at the factory, making it prefabricated for the site. On-site, there is no need for cumbersome work; after installing the PIS, basically only joint connections are required. It ensures stable waterproofing! Achieving work efficiency and promoting flood prevention and water resistance. This is an innovative and advanced product for underground beam sleeve construction. <Features> ■ Excellent waterproof performance [Flood prevention and water resistance promotion] ■ Proposal for labor-saving at construction sites ■ Adaptable to individual project design specifications ■ Improved work efficiency, standardized quality, and enhanced maintainability [To Designers and Contractors] FEP pipe through-piping, bell mouth terminal installation, connection of different pipes (AQ type), and various connection parts of Eflex can be arranged according to the specifications of each construction site! Furthermore, it can also respond to unexpected water leaks! It combines maintenance and serviceability, making it a versatile and highly adaptable product. (Feel free to request drawings as well) *For details, please request a catalog from "Contact Us" or view the PDF data from "Download"


Labor-saving! Waterproof sleeve for underground outer walls (underground beams) pipe-in-sleeve.

n3qCCRDqKINhyhC1750917613_1750917641.png No.1.png No.4.png No.5.png No.6.png No.2.png No.3.png OJAYZFUHzMCMPGl1750916470_1750916491.png DgYf7nZN38lJzhA1750916252_1750916272.png WxgKCOFpQLvtmq41750916290_1750916311.png

Inquire About This Product

Related Videos

basic information

<Specifications> ●Water Resistance ・Test Value (Smooth Inner Pipe) 0.1MPa×72 hours (This product does not guarantee complete waterproofing.) ●Composition ・Sleeve Material: Rigid Polyvinyl Chloride Pipe (JIS K 6741) ・Sleeve Penetration Pipe: Underground Electric Wire Protection Pipe, Furukawa Electric Co., Ltd. Eflex ・Sealing Material: Curing Waterproof Material <Notes> *This product does not include a "water stop ring." Please prepare a water stop material that matches the outer diameter of the sleeve according to the manufacturer's specifications. *For FEP/penetration pipe connections, please select straight joints and different pipe joints (AQ type) from the Aqua series of Furukawa Electric Co., Ltd. *The "waterproof performance" of the sealing material (curing waterproof material) is based on internal measurement values and is not guaranteed. [Contact Information] ・Planning and Proposal: Furukawa Elecom Co., Ltd. New Business Promotion Office TEL: 03-5297-8711 FAX: 03-5297-8705 ・Design and Manufacturing: EPJ INC. TEL: 03-5643-8137 FAX: 03-5643-8138 Email: info@epj-inc.co.jp

Price range

Please contact us for details

Delivery Time

Please contact us for details

Applications/Examples of results

■Development Concept■ "Labor-saving in Construction Sites" In modern construction projects, the aging of skilled workers and the departure of young people have led to a constant demand for both work efficiency and construction quality. By utilizing "prefabrication technology," we aim to solve the persistent issues at construction sites and extend the lifespan of buildings. Furthermore, we are developing groundbreaking products that also incorporate maintenance and upkeep performance! "Enhancing the Waterproofing Performance of Buildings" At each construction site, the narrow gaps between the pit, underground beam sleeves, and penetrating pipes require "waterstop treatment" as mandated. According to the "Guidelines for Flood Prevention Measures for Electrical Equipment in Buildings" issued by the Ministry of Land, Infrastructure, Transport and Tourism and the Ministry of Economy, Trade and Industry, we are advocating for the development of products that possess safe and reliable waterproofing performance! <Areas of Demand> Underground beam sleeves (subterranean outer wall sections) for various construction projects <Countermeasure Types> - Flood prevention construction: Guidelines for Flood Prevention Measures for Electrical Equipment in Buildings by the Ministry of Land, Infrastructure, Transport and Tourism / Ministry of Economy, Trade and Industry - Promotion of waterproofing: Concept of waterproofing for sewer facilities by the Ministry of Land, Infrastructure, Transport and Tourism, etc. 【Inquiry Ranking】 1st: Medical Facilities 2nd: Accommodation Facilities 3rd: Commercial Facilities 4th: Educational Facilities 5th: Offices (High-rise)

Detailed information

  • zxMOF2aFsW1Qw7A1745316180_1745316240.png

    Leakage / Underground Beam Sleeve Section

  • KiRgCZPrafqGXrl1745316412_1745316450.jpg

    Leak/Pit interior

  • mPpPqDQZaopdTxB1745316376_1745316398.png

    Conventional construction 1

  • plIJTiMl1pkoogK1746759582_1746759596.png

    Conventional construction 2

  • A7ESCi1YTzYqelo1745316773_1745316792.jpg

    Conventional construction 3

  • FFHkJluAO9QoUzx1745316260_1745316285.jpg

    Cable penetration (bell mouth)

  • 1I8lvNJlC8G3q601750913041_1750913070.png

    Pipe-in-sleeve construction 1

  • 67DPQI6bXHlRnXj1750913108_1750913228.png

    Pipe-in-sleeve construction 2

  • 0rb2sA7ysRQgLCB1750913395_1750913413.png

    Pipe-in-sleeve construction 3

Line up（16）

Model number overview
PIS30U Conduit Pipe / FEP-30 * Rigid Polyvinyl Chloride Pipe VP-50
PIS40U Conduit Pipe / FEP-40 * Rigid Polyvinyl Chloride Pipe VU-65
PIS50U Conduit Pipe / FEP-50 * Rigid Polyvinyl Chloride Pipe VU-75
PIS65U Conduit Pipe / FEP-65 * Rigid Polyvinyl Chloride Pipe VU-100
PIS80U Conduit Pipe / FEP-80 * Rigid Polyvinyl Chloride Pipe VU-125
PIS100U Conduit Pipe / FEP-100 * Rigid Polyvinyl Chloride Pipe VU-150
PIS125U Conduit Pipe / FEP-125 * Rigid Polyvinyl Chloride Pipe VU-200
PIS150U Conduit Pipe / FEP-150 * Rigid Polyvinyl Chloride Pipe VU-250
PIS30P Conduit Pipe / FEP-30 * Rigid Polyvinyl Chloride Pipe VP-50
PIS40P Conduit Pipe / FEP-40 * Rigid Polyvinyl Chloride Pipe VP-65
PIS50P Conduit Pipe / FEP-50 * Rigid Polyvinyl Chloride Pipe VP-80
PIS65P Conduit Pipe / FEP-65 * Rigid Polyvinyl Chloride Pipe VP-100
PIS80P Conduit pipe / FEP-80 * Rigid polyvinyl chloride pipe VP-125
PIS100P Conduit Pipe / FEP-100 * Rigid Polyvinyl Chloride Pipe VP-150
PIS125P Conduit Pipe / FEP-125 * Rigid Polyvinyl Chloride Pipe VP-200
PIS150P Conduit pipe / FEP-150 * Rigid PVC pipe VP-250
