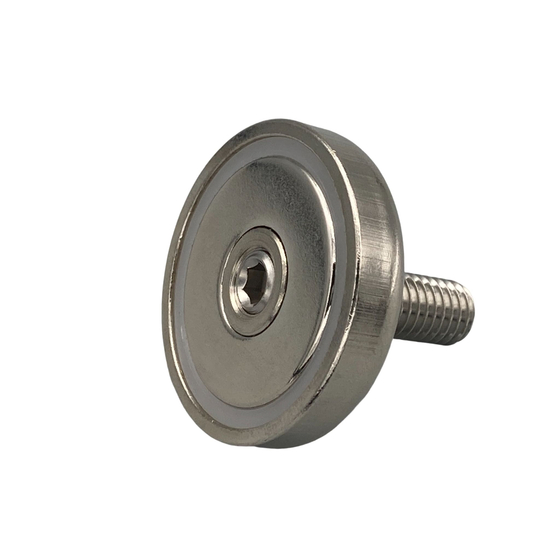

To enhance the adhesive force, the neodymium magnet is covered with an iron cap. It is also possible to use a male thread type and secure it with a hex nut.
The magnet side has a hexagonal hole, allowing it to be tightened with a hex wrench. By attaching the included anti-slip rubber to the adhesive surface, it provides scratch prevention and anti-slip effects.
Inquire About This Product
basic information
【Material】 Magnet (main body): Neodymium/Nickel-plated Magnet (cap): SPCC/Nickel-plated Screw: Equivalent to SUS304 Non-slip rubber: CR sponge/C4305(t0.5) Nitto 5000NS(t0.16) 【Size】 Adhesive force 1.5kgf Outer diameter 10mm M3×screw length 7,10,15,20mm Adhesive force 2kgf Outer diameter 12mm M3×screw length 7,10,15,20mm Adhesive force 4kgf Outer diameter 16mm M4×screw length 7,10,15,20,25mm Adhesive force 6kgf Outer diameter 20mm M4×screw length 8,13,18,23mm Adhesive force 20kgf Outer diameter 25mm M5×screw length 7,12,17,22mm Adhesive force 23kgf Outer diameter 32mm M6×screw length 12,17,22,27mm Adhesive force 38kgf Outer diameter 36mm M8×screw length 12,17,22,27,32mm Adhesive force 63kgf Outer diameter 42mm M8×screw length 11,16,21,26,31mm Adhesive force 86kgf Outer diameter 48mm M8×screw length 13.5,18.5,23.5,28.5mm
Price range
Delivery Time
Applications/Examples of results
[Usage] For fixing, adhesion, holding, etc.
Detailed information
-
Suction force 1.5kgf, outer diameter 10mm, M3 × screw lengths 7, 10, 15, 20mm Suction force 2kgf, outer diameter 12mm, M3 × screw lengths 7, 10, 15, 20mm Suction force 4kgf, outer diameter 16mm, M4 × screw lengths 7, 10, 15, 20, 25mm Suction force 6kgf, outer diameter 20mm, M4 × screw lengths 8, 13, 18, 23mm Suction force 20kgf, outer diameter 25mm, M5 × screw lengths 7, 12, 17, 22mm Suction force 23kgf, outer diameter 32mm, M6 × screw lengths 12, 17, 22, 27mm Suction force 38kgf, outer diameter 36mm, M8 × screw lengths 12, 17, 22, 27, 32mm Suction force 63kgf, outer diameter 42mm, M8 × screw lengths 11, 16, 21, 26, 31mm Suction force 86kgf, outer diameter 48mm, M8 × screw lengths 13.5, 18.5, 23.5, 28.5mm
