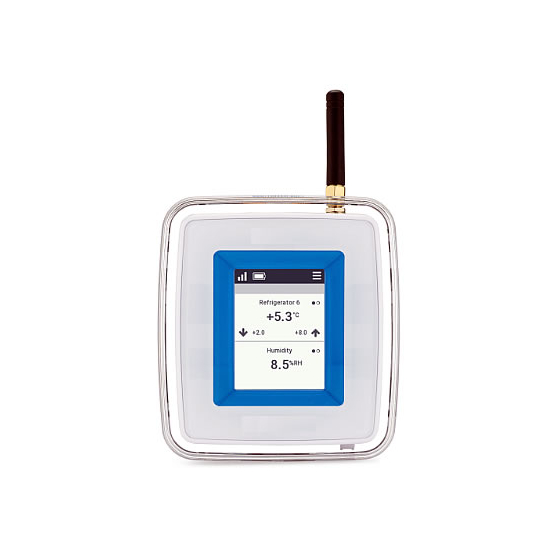

A data logger equipped with long-range LoRaWAN wireless connectivity for real-time monitoring of temperature, humidity, and CO2 concentration.
The MI1CTX-L1D has 2 channels, while the MI1CTX-L2D has 4 channels, making two types available. The data measured is recorded in onboard memory and transmitted to a dedicated remote monitoring solution from the receiver (MI1CTX-ARECD) via LoRaWAN or Bluetooth connection, allowing real-time monitoring of data from the cloud on smartphones and mobile tablets. The MI1CTX-L1D offers touch screen control and highly visible alert indicators.
Inquire About This Product
basic information
Sensor: Wired or wireless sensor channel (automatic setup/reset, temperature, relative humidity, CO2) Alarm types: Audible/visual (phone, text, and email alarms) Antenna type: Omnidirectional Power supply: 3.6V lithium batteries x 2 (user-replaceable), 5V power adapter (optional) Battery life: Approximately 1 year (standard use) Display and interface: 6.1 cm glove-compatible color touchscreen Settings, synchronization with server, latest readings, alarm status, alarm approval with PIN code, temperature display in °C or °F Communication range: 8 km (LoRaWAN output with antenna sensitivity combination can reach up to approximately 16 km in line of sight) Operating conditions (no condensation): 0°C to +50°C, 0 to 90% RH (when using IP67 waterproof case: 0 to 99.99% RH) Case: ABS/ABC-PC casing Dimensions: 100.8 x 110.8 x 29.6 mm Weight: 180 g (including battery) Mounting options: Wall mounting kit using screws, magnets, or Velcro, with optional lock using a padlock Certification: CE, FCC, IC PC requirements: Windows 7 or later
Price range
Delivery Time
Applications/Examples of results
Ideal for life science fields such as laboratories, hospitals, storage facilities, and manufacturing.
