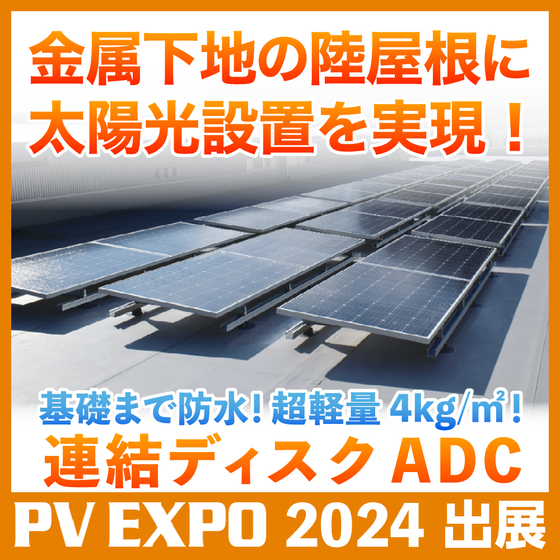

Lightweight & integrated waterproof foundation 'Connected Disk ADC' enables solar panel installation on flat roofs and deck plate substrates [Exhibiting at PV EXPO 2024].
The "Connected Disk ADC" enables the installation of solar modules on flat roofs and deck plate substrates! Typically, when installing solar equipment on roofs with deck plate substrates, it can be difficult to adopt a base foundation type due to considerations such as load-bearing capacity and the shape of the deck plate. However, by using the lightweight Connected Disk ADC, which weighs about 4 kg per square meter, installation is possible! *Installation will take into account beam spacing and joints. Assuming waterproofing renovations, the system integrates with the waterproof layer, so there is no need to worry about damaging the waterproofing with a foundation installation. *For more details, please refer to the PDF or feel free to contact us. 【Smart Energy Week Spring 2024 [PV EXPO Solar Power Exhibition] Participation Confirmed】 Event Name: SMART ENERGY Week [Spring] 2024 [PV EXPO Solar Power Exhibition] Dates: February 28 (Wednesday) to March 1 (Friday), 2024, 10:00 AM to 6:00 PM *Final day ends at 5:00 PM Venue: Tokyo Big Sight *Free admission (pre-registration required) Exhibition Booth Number: East Hall 3 E18-36
Inquire About This Product
basic information
【Product Information】 (Name) Link Disk ADC (Overview) Foundation for waterproof integrated solar panel mounting frames for flat roofs (Dimensions) Fixture part: Diameter 90mm, Patch part: Diameter 180mm (Material) Surface: Soft PVC resin, Core material: Aluminum die-cast (Specification lineup) EB Disk specification / EB Base rail specification (Roof substrates suitable for installation) RC substrate, Deck concrete substrate, ALC substrate, etc. *Installation feasibility may vary depending on the building's location and other conditions. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Uses】 ■Educational facilities ■Medical and welfare facilities ■Public facilities ■Residential buildings and apartments ■Factories *For more details, please refer to the PDF document or feel free to contact us.
