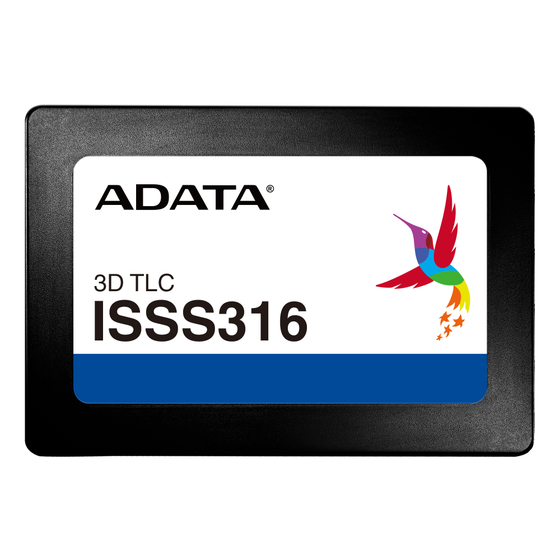

High-reliability 2.5-inch SSD (equipped with BiCS5 NAND flash) specialized for industrial and embedded applications.
The NAND flash features high durability 3D TLC with a P/E cycle of 3,000 times, and with the adoption of the SATA III 6Gb/s transfer interface, it achieves read/write speeds of up to 550/520MB/s. It is equipped with LDPC error correction code functionality to ensure data reliability. It is suitable for storage in monitoring systems and industrial automation equipment that require durability, reliability, and large data capacity. For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
[Specifications] Capacity: 128GB to 2TB NAND Flash: 3D-TLC BiCS5 Write endurance cycle: 3K cycles/block Form factor: 2.5-inch SATA Interface: SATA III 6.0Gbps Vibration resistance: 20G (20-2000Hz) Shock resistance: 1500G/0.5ms MTBF: Over 3,000,000 hours Operating temperature: 0ºC to 70ºC (normal temperature range) Operating humidity: 5% - 95% RH, non-condensing Features: LDPC ECC, SCL Cache, S.M.A.R.T., wear leveling, NCQ, and TRIM commands
Price range
Delivery Time
Applications/Examples of results
Industrial Automation Surveillance Camera Industry
Detailed information
-
[Performance Example] (SSS316-002TCTB5, 2TB) Sequential Read (Maximum): 560MB/s Sequential Write (Maximum): 520MB/s
