Example: Injection Molding - Exploration of Gate Position Considering Warpage Measures and Robust Design

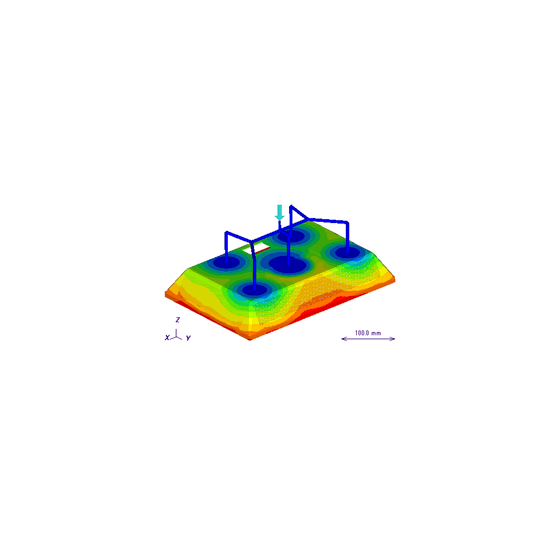

We will explore design proposals that achieve both anti-sledding measures and robustness in collaboration with 3D TIMON.
Robustness represents the strength (small variation) against changes in the environment or situation and is an important evaluation criterion that affects yield in actual production. "AMDESS" can provide virtual variations to the approximation model, allowing for the evaluation of this robustness. Here, we will introduce a case of gate position optimization where "AMDESS" and "3D TIMON" are linked, and robustness is evaluated after the usual optimization. [Contents] ■ Overview ■ Analysis Model ■ Optimization Conditions ■ Optimization Results ■ Variation Evaluation ■ Discussion *Detailed information about the case can be viewed through the related links. For more information, please feel free to contact us.
