I will teach you the basics of fastening screws for resin. <Technical materials provided>
Octa Lobular Series SSOO Bolt SSOO Nut PLUS SSOO Nut SSOI Nut
Are you having trouble with "fastening resin"? You can fasten resin with "bolts + nuts." You will gain basic knowledge about screws specifically for resin.
Are you struggling with "fastening of resin"? With resin, you can achieve fastening using "bolts + nuts" by utilizing dedicated screws. Dedicated screws include insert nuts and insert bolts that are embedded in the resin. In softer resins compared to iron, embedded bolts or nuts can rotate together, leading to deformation or breakage of the resin. Have you ever experienced deformation of resin products due to "nut rotation"? Our original development of dedicated screws for resin (Octa Lobular(R) series) features a special octagonal head shape that ensures high torque resistance and high pull-out strength. Even when tightened with high torque, it prevents "rotation" and "pull-out," protecting resin products. You can choose from various types of insert nuts (simultaneous molding type, press-fit type, and both with caps) and insert bolts (both simultaneous molding and post-embedding options) according to your specifications. If you're wondering, "What is an insert nut?" please refer to our technical document "Basic Knowledge of Insert Nuts." It clearly explains the usage of insert nuts and compatible resins, covering the "basics of insert nuts." You can view it via PDF download.
Inquire About This Product
basic information

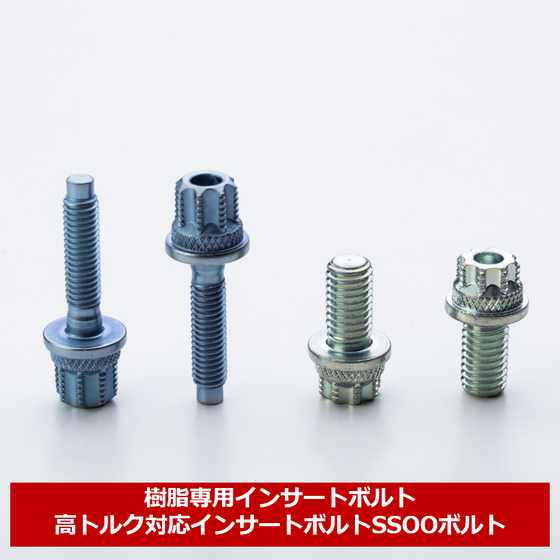

【Octa Lobular(R) Octa Lobular Series】 The unique octagonal shape (Octa Lobular shape) ensures 1.8 times the torque resistance and pull-out strength compared to knurled products. It enables high-torque tightening without damaging resin products. ■ High-torque compatible press-fit insert bolt 'SSOO Bolt' (simultaneous molding type / post-insertion type) Material: To be discussed Surface treatment: Zinc-nickel alloy plating, trivalent chromate plating ■ High-torque compatible cap insert nut (SSOO Nut PLUS) (simultaneous molding type / post-insertion type) Material: Nut - SWCH10R, Cap - equivalent to SPCC Surface treatment: Zinc-nickel alloy plating, trivalent chromate plating ■ Heat press-fit insert (outsert) nut 'SSOO Nut' (post-insertion type) Material: SWCH10R Surface treatment: Zinc-nickel alloy plating ■ High-torque compatible insert nut (SSOI Nut) (simultaneous molding type) Material: SWCH10R Surface treatment: Trivalent chromate plating *Detailed data for each product can be viewed via PDF download. For more information on specifications and pilot holes, please feel free to contact us.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
【Applications】 ○ Hydrogen emission parts ○ Intercooler parts ○ Air cleaner ○ Intake manifold ○ Engine cover ○ Interior resin parts ○ EV battery case ○ Console box ○ Roof rail ○ Other resin inserts, etc. ● For more details, please contact us or download the catalog.
Detailed information
-
This is the usage record of SSOO nuts. (Parts for hydrogen emission for hydrogen vehicles)
-
This is the usage record of SSOO nuts. (Cover parts for automotive door speakers)
-
This is the usage record of SSOO nuts. (Automotive intercooler parts)
-
This is the adoption record of SSOO nuts. (For EV battery cases)
Line up（4）
| Model number | overview |
|---|---|
| SSOO Bolt | High torque compatible insert bolt that can be embedded and used with resin |
| SSOO Nut PLUS | Horizontal cap prevents resin inflow. An insert nut with added anti-loosening function by ensuring metal touch |
| SSOO Nut | High torque compatible outsert nut that can be embedded later through thermal press fitting |
| SSOI Nut | High torque compatible insert nut for simultaneous molding |
catalog（10）
Download All Catalogs
Company information
Connecting things to things. We propose the optimal fastening solutions to meet our customers' needs. Behind this proposal capability lies our technical expertise to analyze and evaluate everything from materials to fasteners, our development and manufacturing capabilities to design and produce both bolts and nuts, and our procurement strength with partnerships with 200 cooperating manufacturers. Through the small component of screws, we contribute to the development of various industries. At Daiichi Kogyo, we manufacture both bolts and nuts. Although they are both "screws," the manufacturing processes, equipment, and materials for bolts and nuts are different. We possess the processing equipment and know-how for both. With 60 years of experience in screw manufacturing, as a specialized group that produces both bolts and nuts, we leverage our accumulated know-how to provide the bolts and nuts that our customers need.
