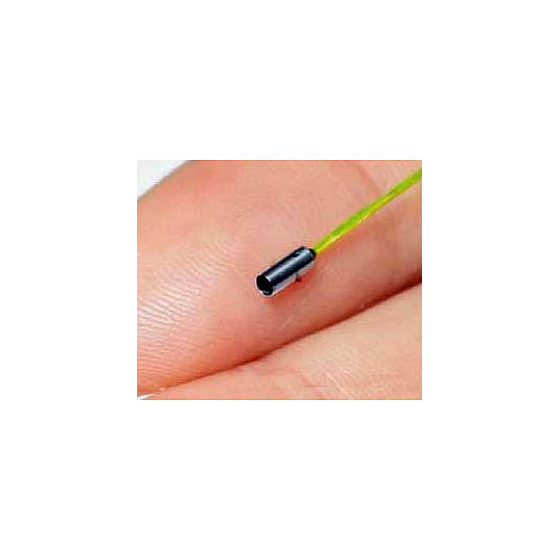

φ0.97mm ultra-small high-definition CMOS color camera (CVBS) / Model number M244AV-2000-120RCAP
With a diameter of 1.66mm and equipped with a high-brightness LED The head size of the LED-equipped type is among the smallest in the world at φ1.66×4mm. * The type without LED measures φ0.97mm×4mm. It is a high-brightness LED-equipped ultra-compact 160,000 pixel CMOS color camera.
Inquire About This Product
basic information
■High resolution (400×400 pixels, 1/31” CMOS sensor adopted) ■Analog video output (CVBS), USB2.0 output ■Equipped with high-brightness LED lighting. (There is also a type without lighting.) ■Lens <Field of view 120°> 0.175mm/F2.8 ■Features ●Ultra-compact (1/31” CMOS sensor adopted) ●Resolution 400×400 pixels, 30fps ●Lens is f0.175mm/F2.8 (field of view 120°) ●Analog output type (CVBS) and USB output type (USB2.0) ●Analog output type has RCA connector (male) ●USB connectors include Type A, micro Type B, Type C, mini Type B ●Common USB capture software can be used. (Driver-free) ●Compatible with OS: Windows XP and above, Linux, MAC OS, Android ●Camera settings such as resolution, brightness, contrast, etc. can be adjusted via USB.
Price range
Delivery Time
Applications/Examples of results
Fiberscope
