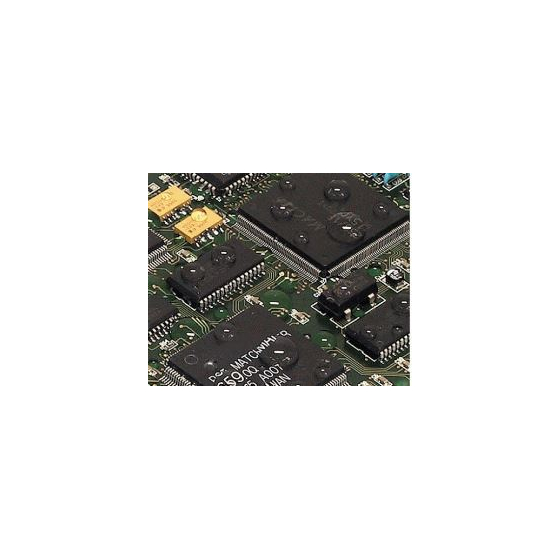

[Fluorine Coating Agent Example] Strongly protects printed circuit boards from moisture and acids.
FG-3650 series
Fluorine coating is ideal for substrate coating. It has four times the moisture and water resistance of urethane and acrylic coatings when dried at room temperature. It is non-flammable and safe.
The fluorine coating agent (conformal coating) "FloroSurf FG-3650 series" is suitable for waterproofing and insulation protection of electronic components, as well as for moisture-proof and waterproof coatings on printed circuit boards. It exhibits protective functions such as moisture resistance, saltwater resistance, water resistance, acid resistance, resistance to lithium battery electrolyte, and water and oil repellency, all in a thin film. 【Features】 ■ Non-flammable and low-odor liquid, making it safe to use! Not classified as an organic solvent. → FloroSurf FG-3650 is non-flammable and low in toxicity, ensuring safety. It is not subject to PRTR law or fire service law regulations. No explosion-proof equipment is required, and quantity management is not necessary. ■ Not classified as an organic solvent under the Industrial Safety and Health Act. → This reduces management items such as environmental measurements and organic solvent health checks for workers. ■ Higher moisture and waterproofing performance compared to other resins! → It has four times the moisture-proof performance compared to urethane and acrylic moisture-proof coatings. ■ Resistant to acidic substances such as lithium battery electrolytes! → It can protect the circuit board in case of electrolyte leakage, preventing fire accidents. ■ Cures at room temperature in 5-20 minutes after application! → No special equipment such as heating furnaces is required. ☆ Currently providing samples and a moisture-proof coating handbook exclusively for corporate clients.
Inquire About This Product
basic information
【Other Features】 - It has four times the moisture-proof performance compared to urethane and acrylic-based moisture-proof coatings, providing moisture protection with a thin film. This makes it ideal for lightweight devices such as mobile equipment, as it minimizes weight increase due to the coating film. - It is resistant to the electrolyte of lithium batteries. It can protect the substrate in case of electrolyte leakage, preventing fire accidents. - It exhibits strong protective effects against acidic gases, saline solutions, and corrosive liquids, also providing rust prevention. - Unlike silicone, it does not contain low molecular compounds, so it does not cause contact failure of electrical contacts after application. - It dries at room temperature, with a drying time of 5 seconds to 30 minutes. Heating is not required. - The non-flammable solvent type is non-flammable and low in toxicity. It is not subject to PRTR law or fire safety regulations. - It has low viscosity and is easy to handle, keeping the workplace clean. - The pot life is semi-permanent, eliminating waste. - Repairs can be made after coating. - There is also a model with fluorescent dye for application verification. *Our products are industrial chemical products, and we cannot provide samples for personal use (in cases without corporate status), medical use, or applications involving contact with food.
Price range
Delivery Time
Applications/Examples of results
【Protection Applications - Examples of Achievements】 ◎ Moisture and waterproof coating for implementation boards of mobile devices such as smartphones ◎ Migration prevention for aircraft and automotive boards, battery electrolyte countermeasures ◎ Copper pattern protection coating from corrosive gases ◎ Substrate protection coating from lithium battery electrolytes ◎ Prevention of metal ion migration (diffusion) ◎ Waterproof and moisture protection coating for outdoor equipment implementation boards such as air conditioning outdoor units and water heaters ◎ Protection coating for water-related boards in toilets, kitchens, etc. ◎ Protection coating for electronic boards and metal parts from sulfur gas and other substances ◎ Coating for LED sulfide countermeasures *For further details, please contact us.
Detailed information
-
In models with fluorescent dye, the application site can be visually confirmed after application by exposing it to a black light.
Line up（2）
| Model number | overview |
|---|---|
| FG-3650TH | Quick-drying model. Drying at room temperature in less than 5 minutes. |
| FG-3650C | Model with slightly slower drying. Drying at room temperature takes 10-20 minutes. Compatible with jet dispensers. |
Company information
Our company, Fluoro Technology Co., Ltd., is a specialized manufacturer focused on the following: * Fluorine-based water and oil repellent coatings * Non-flammable conformal coatings (moisture-proof coatings for substrates) * Dry release agents, aerosol-type fluorine release agents * Anti-fouling (fingerprint prevention) coatings We are agile and can respond precisely to your needs. Fluorine-based compounds are available as high-performance materials, but we specialize in room-temperature coatings that possess functions such as water and oil repellency, anti-fouling, moisture resistance, and release properties. We synthesize fluorine resin components in-house to manufacture fluorine-based coatings and water and oil repellent treatments, allowing us to customize resin properties and modify solvent specifications with great attention to detail. Additionally, we have accumulated a wealth of technical information regarding usage methods and applications, which we can provide for various purposes. Please note that our products do not contain regulated substances (PFOS, PFOA, PFHxS, and long-chain PFCA with C8 or higher).
