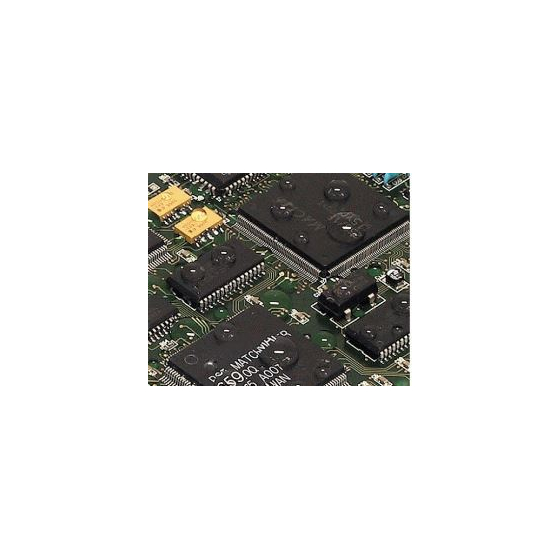

[Fluorine Coating Agent Example] Protects printed circuit boards from battery electrolyte.
FloroSurf FG-3650 Series/FS-1610 Series
A fluororesin coating with acid resistance prevents ignition of the substrate during electrolyte leakage. It is a room-temperature drying fluorine coating agent that also prevents corrosion of metal parts.
Fluorine coating agents exhibit outstanding resistance to lithium battery electrolyte compared to other resin coating agents. They can prevent fires caused by circuit short circuits when the electrolyte leaks, as well as corrosion of metal parts. They provide protective functions such as moisture resistance, saltwater resistance, water resistance, acid resistance, resistance to lithium battery electrolyte, and water and oil repellency, all in a thin film. They have a proven track record as safety measures in various fields, including aircraft, automotive circuit boards, and mobile devices. **Challenges Addressed by Fluorine Coating:** - No short circuits occur even if lithium battery electrolyte leaks and adheres to the circuit pattern on the board. - Can be easily applied with dispensers and dries within minutes at room temperature. No drying process is required. - Non-hazardous material with no fire safety regulations. No quantity management or explosion-proof measures are necessary. - Not classified as organic solvents under the Industrial Safety and Health Act. Regular organic health checks are not required. *We offer free samples to those who request them (limited to corporate clients). Please include "Sample Request" in your inquiry. *We sincerely apologize, but as our products are industrial chemical products, we cannot provide samples for medical or food-related applications.
Inquire About This Product
basic information
■ Fluorine coating has excellent resistance to the electrolyte of lithium batteries. It can protect the substrate in the event of electrolyte leakage, preventing fire accidents caused by short circuits. ■ It has four times the moisture-proof performance compared to urethane and acrylic-based moisture-proof coatings, providing moisture protection with a thin film. It minimizes weight increase due to the coating film, making it suitable for lightweight devices such as mobile equipment. ■ It exhibits strong protective effects against acidic gases, saline solutions, and corrosive liquids, also providing rust prevention effects. ■ Unlike silicone, it does not contain low molecular compounds, so it does not cause contact failure of electrical contacts after application. ■ It dries at room temperature, with a drying time of 5 seconds to 30 minutes. No heating is required. ■ The non-flammable solvent type is non-flammable and low toxicity. It is not subject to PRTR law or fire service regulations, eliminating the need for explosion-proof equipment or quantity management. ■ It does not fall under the organic solvents regulated by the Industrial Safety and Health Act. ■ It has low viscosity and is easy to handle. It does not dirty the workplace. ■ The pot life is semi-permanent, resulting in no waste. ■ Repairs can be made after coating. ■ There are models with fluorescent dyes for application confirmation under black light.
Price range
Delivery Time
Applications/Examples of results
【Achievements】 ◎ Electrolytic solution coating for mobile devices such as smartphones ◎ Electrolytic solution coating for automotive mounted circuit boards ◎ Electrolytic solution coating for aircraft mounted circuit boards ◎ Protective coating for copper patterns against corrosive gases ◎ Protective coating for circuit boards against lithium battery electrolytes ◎ Prevention of metal ion migration (diffusion) ◎ Waterproof and moisture-proof protective coating for outdoor equipment mounted circuit boards such as air conditioning outdoor units and water heaters ◎ Protective coating for water-related circuit boards in toilets and kitchens ◎ Protective coating for electronic circuit boards and metal parts against sulfur gas and other substances
Line up（2）
| Model number | overview |
|---|---|
| FS-1610 Series | High resistance to electrolytic solutions with a thin film of less than 10 microns |
| FG-3650 Series | This is a thick film model up to 100μ. Several thickness options are available in the desired film thickness. |
Company information
Our company, Fluoro Technology Co., Ltd., is a specialized manufacturer focused on the following: * Fluorine-based water and oil repellent coatings * Non-flammable conformal coatings (moisture-proof coatings for substrates) * Dry release agents, aerosol-type fluorine release agents * Anti-fouling (fingerprint prevention) coatings We are agile and can respond precisely to your needs. Fluorine-based compounds are available as high-performance materials, but we specialize in room-temperature coatings that possess functions such as water and oil repellency, anti-fouling, moisture resistance, and release properties. We synthesize fluorine resin components in-house to manufacture fluorine-based coatings and water and oil repellent treatments, allowing us to customize resin properties and modify solvent specifications with great attention to detail. Additionally, we have accumulated a wealth of technical information regarding usage methods and applications, which we can provide for various purposes. Please note that our products do not contain regulated substances (PFOS, PFOA, PFHxS, and long-chain PFCA with C8 or higher).
