The most powerful ultrasonic thickness gauge in Dakota. Capable of measuring the thickness of GFRP, CFRP, rubber, high-density polyethylene, and cast metals.

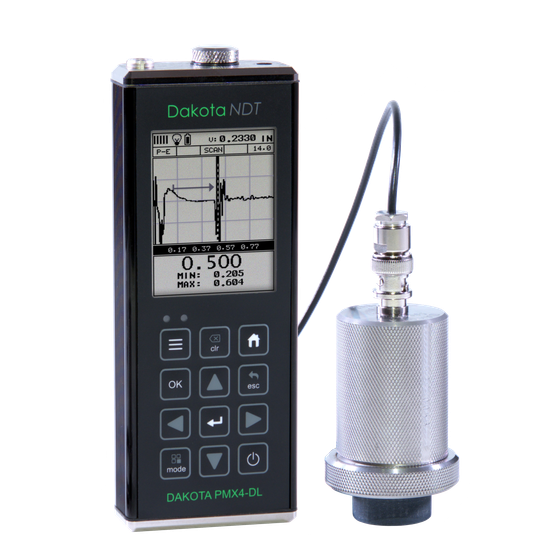

The PMX4-DL is the most powerful ultrasonic thickness gauge developed for high-damping materials. It measures the thickness of materials such as glass fiber and carbon fiber reinforced plastics (GFRP and CFRP), rubber, high-density polyethylene (HDPE), and cast metals. It is also capable of measuring the thickness of composite materials over 100mm. It features a built-in 8GB data logger, allowing measurement data to be easily transferred and displayed on a PC using the included USB cable. It also supports power supply from mobile batteries or USB connectors on computers. ■ Features - A powerful ultrasonic thickness gauge for high-damping materials (GFRP, CFRP, rubber, etc.) - Capable of measuring the thickness of composite materials over 100mm - Newly developed low-frequency transducer with excellent penetration at 500kHz - Optimized filter for measuring high-damping materials - Large-capacity data storage (8GB) and USB power supply *For more details, please refer to the PDF document or contact us.
Inquire About This Product
basic information
■Specifications ・Measurement Range Pulse-Echo: 1.3mm to 30m (steel), 2.54mm to 127mm (composite materials) Echo-Echo: 2.54 to 900mm (steel) Multi-Echo: 2.54 to 150mm (steel) ・Display Resolution: 0.1mm/0.01mm ・Display: A-scope (RF, half-wave rectified) / B-scope / Numeric ・Gates: Up to 3 gates (depending on measurement mode) ・Transducer: Single-element transducer ・Frequency: 500kHz to 10MHz ・Pulse Voltage: 100 / 150 / 200 / 300 / 400V ・Pulses: TB 0.5MHz / TB 1MHz / TB 2MHz / TB 5MHz / TB 10MHz HV Spike / HV Normal / HV Wide, etc. ・Dimensions: 64 (W) × 165 (L) × 32 (D) mm ・Weight: Approximately 383g (including battery) ・Power Supply: Three AA alkaline batteries (35 hours of operation), USB power supply ・Warranty Period: 2 years (warranty covers the main unit only) *For more details, please refer to the PDF document or contact us.
Price range
P4
Delivery Time
P4
Applications/Examples of results
■Thickness measurement of glass fiber reinforced plastic (GFRP), carbon fiber reinforced plastic (CFRP), rubber, high-density polyethylene (HDPE), cast metals, etc. ■Thickness measurement of various metals.
