It limits the displacement of piping and plant equipment during operation and plays an important role as a safety guiding device for the system. It protects against unexpected impact loads.

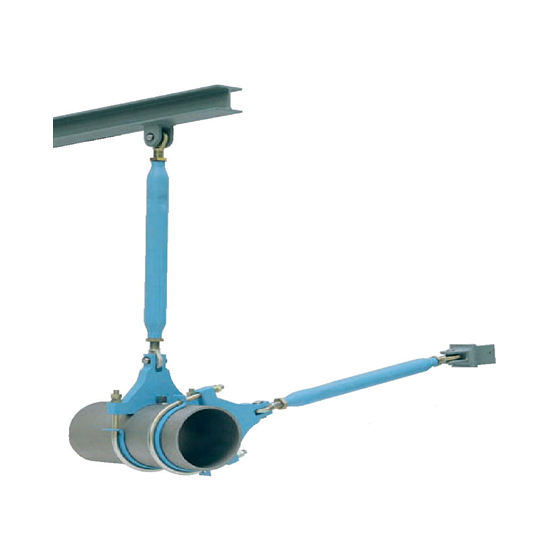

This is a rigid strut (restraint) from LISEGA, a German company that boasts the world's top market share in pipe supports (piping support devices). It is used where displacement during operation needs to be restricted, rigidly coupling from connection point to connection point, and does not allow axial movement. Since it uses spherical bearings, it permits slight displacement in the lateral direction. It plays an important role in ensuring the safety of piping systems during operation. - Transmission of displacement from unexpected load events - Induction function to control the planned thermal movement direction of the piping system - Stabilization through zero-point fixation of flexible piping systems - Designed for axial fixation Applications: Restraints for plant equipment and piping Rated load: 4 to 1000 kN Installation length: 375 to 6000 mm (with adjustment options of 150 mm or 300 mm) Main material: Carbon steel It consists of a joint with spherical bearings at both ends and a highly rigid main body. Installation to structures is done using welded brackets (Type 35), and connection to piping is made using dynamic clamps.
Inquire About This Product
basic information
For more details, please refer to the product catalog "Standard Support 2020." Please see Product Group 3 (Rigid Strut Type 39).
Price information
We will provide a quote based on the quantity and specifications, so please feel free to contact us.
Delivery Time
※The delivery date may vary depending on the quantity and specifications, so please feel free to contact us.
Applications/Examples of results
We have numerous delivery records for plant equipment and piping, including nuclear power plants.
