Seismic B-type vibration restraint wire method: Japan Building Center certified method: Patent pending.
Seismic B-type vibration control wire method: Japan Architecture Center certified method: Patent pending.
BCJ certification has been obtained for the "Type B seismic restraint wire method." It complies with the Type B seismic support requirements established in the 2014 Guidelines for Seismic Design and Construction of Building Equipment.
The design is based on the 2014 guidelines for seismic design and construction of building equipment. We have received certification as a "recommended construction method" for construction that falls under Category B. *Japan Building Center General Evaluation (BCJ) Evaluation Number - SS0042-01 *Patent pending <Features: Easy, Safe, High Quality> • Easy construction even in narrow sites (renovation and expansion) • No processing of materials required on-site • Reduction of used materials (to avoid the risk of falling objects) • Reliable construction by anyone (standardization of construction quality) <Concept> - Versatility - Usable for various electrical and air conditioning equipment. - Constructability - Requires fewer materials compared to conventional methods and can be installed up to 6 times faster. - Easy construction - Simple installation reduces the risk of construction defects. - Safety - No need for cutting or processing work on-site, improving worker safety. - Reliability - Construction method certified by the Japan Building Center (BCJ). - Lightweight - Easy to transport and handle on-site. - Flexibility - Can be installed in locations where conventional all-thread installations are difficult.
Inquire About This Product
basic information

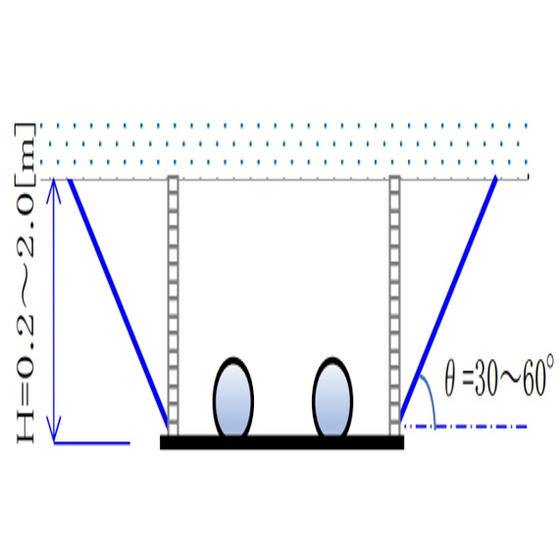

<Specifications and Certified Usage Range> - Maximum allowable load: 4,120N (420.4kg) - Wire used (nominal diameter): 2mm to 6mm diameter → Nominal diameter 2mm: Allowable weight (N) 780 (79.6kg) → Nominal diameter 3mm: Allowable weight (N) 1,910 (194.9kg) → Nominal diameter 4.75mm: Allowable weight (N) 3,030 (309.2kg) → Nominal diameter 6mm: Allowable weight (N) 4,120 (420.4kg) - Please use a suspension length (distance from the bottom of the support part such as a slab to the top of the horizontal member) of 2,000mm or less. - Please use a horizontal member (channel, duct, etc.) with a length of 2,000mm or less. - Please ensure that the installation angle of the sway brace is within the range of 30° to 60°. - When installing a sway brace on piping using a suspension band, please confirm that the suspension band is compatible with Type B seismic support. - For sway braces in the axial direction, please contact Gripple Japan.
Price range
P1
Delivery Time
P2
Applications/Examples of results
Our wire vibration dampers have a proven track record in various countries around the world. In particular, we have seen significant growth in the United States, Canada, and India. We have obtained basic data through tests conducted in those countries. In Japan, we have conducted the necessary tests while receiving strict feedback from the committee members of the Japan Building Center, and we have reported the results and received certification. <Examples of Achievements Overseas> ★United States - Boeing 737 Plant - Caterpillar Plant - Amazon - Siemens - Microsoft Columbia Data Center - Pioneer/DuPont Bio Agriculture R&D Lab - Intel - US Veterans Hospital ★Canada - IKEA - Ottawa Airport - Shorelines Casino - Kitchener West Water Treatment Plant - St. Thomas Elgin General Hospital - Greater Moncton Airport ★India - Hindan Air Base - Boeing - Amazon Infinity - Boeing Hangar C15 - Mumbai Airport
catalog（4）
Download All Catalogs
Company information
Headquarters: United Kingdom: Sheffield Expansion: 90 countries and regions worldwide Japanese Corporation: Gripple Japan Co., Ltd. (established in 2018) Our company is the Japanese subsidiary of Gripple, a pioneering manufacturer of wire joint fittings, established in the UK in 1988. We have been selling our products globally as a top-class player in the industry. Since 1998, we have developed a unique construction method using Gripple and wire ropes, entering the construction industry. Our methods for fall prevention and trip prevention in electrical and air conditioning work have received high praise in various countries, including the UK, the USA, and Germany. In Japan, we focus on sales of products that are generally evaluated by the Japan Building Center and registered with the Ministry of Land, Infrastructure, Transport and Tourism (MLIT) under NETIS.
