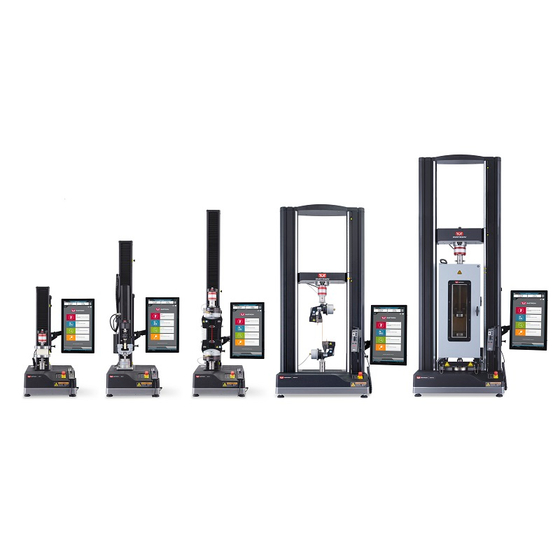

6800 Series Universal Material Testing Machine

basic information

Data collection speed on PC: Load, displacement, and strain channels simultaneously up to 5 kHz. Load measurement accuracy: - For the 2580 load cell, an optional load cell capacity of 1/1000 with an accuracy of ±0.5% of the reading. - The 2580 load cell has an accuracy of ±0.5% of the reading up to a capacity of 1/500. - The 2525/2530 load cells have an accuracy of ±0.5% of the reading up to a capacity of 1/250. Strain measurement accuracy: Equipment meets or exceeds the standards of ASTM E83, BS 3846, ISO 9513, EN 10002-4. Displacement measurement accuracy: ±0.01 mm or 0.05% (whichever is greater). Test speed accuracy: ±0.1% of the set speed (0 or constant load). Single-phase voltage: 100, 120, 220, or 240 VAC ±10%, 47-63 Hz. Operating temperature: +5 to +40°C. Storage temperature range: -25 to +55°C. Humidity range: +10 to +90%, no condensation at 20°C. Protection rating: IP 2X. Protective measures may be required in cases of excessive dust, corrosive fumes, electromagnetic fields, or hazardous conditions.

Price information

Please contact us.

Delivery Time

※Please contact us.

Applications/Examples of results

The 6800 series universal material testing machine is designed for material tests such as tensile, compression, bending, peeling, puncture, friction, and shear tests. This system is compatible with a variety of grips and fixtures listed in Instron's accessory catalog and is designed to conduct the most common and in-demand tests in the biomedical, automotive, home appliance, and materials industries. Application examples: Tensile testing: Temperature-controlled chamber and AVE2 non-contact video extensometer / Grip for cords and threads / Long elongation extensometer / Biobase and 250 kN pneumatic grip Compression and bending: Syringe compression fixture / 3-point bending / Compression plates (10 kN, 100 kN) / Hole-punched compression fixture with swivel platen Peeling, friction, and torsion tests: TorsionAddon torsion attachment option and syringe testing / Quick change load cell / Angle-variable fixture / Fully sealed protective cover / Coefficient of friction.

Detailed information

•

  Bluehill Universal is designed to smoothly conduct all material tests with touch operation. With a focus on usability, it features an innovative vertical screen layout that makes the testing workspace displayed on the control panel very user-friendly. This large screen is a groundbreaking space equipped with an integrated controller. Its intuitive operation allows users to quickly start testing without being affected by individual differences in testing experience, thus minimizing the time spent on operational training. 【QuickTest】 If immediate test results are needed, simply input basic parameters from the QuickTest screen to start the test right away. 【Standard Test Methods】 Bluehill Universal comes with a library of pre-configured test methods based on the most commonly used testing standards such as ASTM, ISO, and EN. 【Guided Testing】 It guides you through the entire testing process with step-by-step instructions, allowing for error-free execution during repeated tests. Additionally, test instructions can be customized with unique text and images.

•

  [Test Profiler] You can perform simple cycle tests using ramp waves, hold waves, and triangular waves. By using conditional logic, you can create test patterns that replicate test conditions in real scenarios.

•

  The automatic positioning function saves the locations of the fixture intervals used for each test method. This allows all operators to perform the tests in exactly the same way.

•

  【Operator Protection Feature】 The 6800 series incorporates an operator protection feature that is currently patent-pending by Instron. This smart function ensures the safety of both the equipment and the operator by controlling the system status from setup to test completion. 【Test Status Display via Indicators】 The 6800 series continuously displays the system status. Users can easily understand that the system is in a safe setup mode, and they are notified to stay away from the test area when the safety limit is removed. 【Smart Close Air Kit】 The risk of finger pinching accidents caused by pneumatic grips is mitigated by reducing the grip's operating pressure and limiting the operating speed during specimen attachment.

•

  ■Latest Model Handset 【Customizable Soft Keys】 With two changeable soft key buttons, operators can assign various operations to the buttons. The soft keys can be saved for each method, allowing customization for each test. 【Virtual Interlock】 This technology, pending patent by Instron, includes a mechanism that prevents the test machine's crosshead from moving unintentionally. 【Variable Speed Jog Button】 In setup mode, the system is configured to move the crosshead at a safe speed suitable for the operator to work in the test space. 【Precise Positioning】 The precision positioning jog wheel with tactile feedback allows the crosshead to be moved to an exact position in increments of 4μm when performing tests that require fine movements. 【Specimen Protection】 Specimen protection automatically fine-tunes the crosshead to prevent unnecessary forces from being applied to the specimen, safeguarding valuable test specimens from damage.

•

  ■Durability 【Collision Mitigation】 If a load is detected during return or while the jog button is activated, the crosshead will stop, preventing damage to the device and breakage of delicate test specimens. 【Load Cell Overload Prevention】 The 6800 series automatically stops when the load cell reaches its maximum capacity, preventing damage to the load cell, system, and fixtures. 【2580 Series Load Cell】 The 2580 series load cell is specially designed for the 6800 testing machine, providing excellent performance with the ability to measure loads with an accuracy of ±0.5% of the reading down to 1/1000 of the load capacity. The load cells designed and manufactured by Instron can withstand loads up to 150% of their load capacity without damage and up to 300% without mechanical failure. The automatic transducer recognition feature and electrical calibration make it user-friendly.
