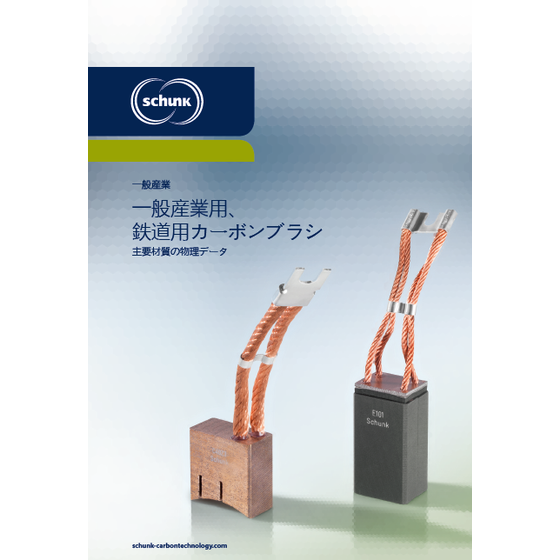

Physical data of main materials for general industrial and railway carbon brushes.
The testing methods and testing equipment generally comply with IEC60413! Introduction of physical data for the main materials.
This document contains the physical data of the main materials for carbon brushes used in general industrial and railway applications, handled by Schunk Carbon Technology Japan. The characteristics of carbon and graphite materials used in carbon brushes can generally be assessed based on electrical resistivity, hardness, bending strength, and bulk density. In the case of metal graphite, the metal content is also provided in addition to the above items. All data presented are average values. The testing methods and equipment generally conform to IEC60413. [Contents (partial)] ■Grade ■Composition ■Voltage drop ■Friction coefficient ■Measurement conditions *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Other Listings】 ■Electrical resistivity μΩm ■Rockwell hardness (HR10/40 HR5/40) ■Bending strength N/mm² ■Bulk density g/cm³ ■Metal content % *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
