We also have models with covers! Through-type terminal blocks with a rated insulation voltage of 250V.

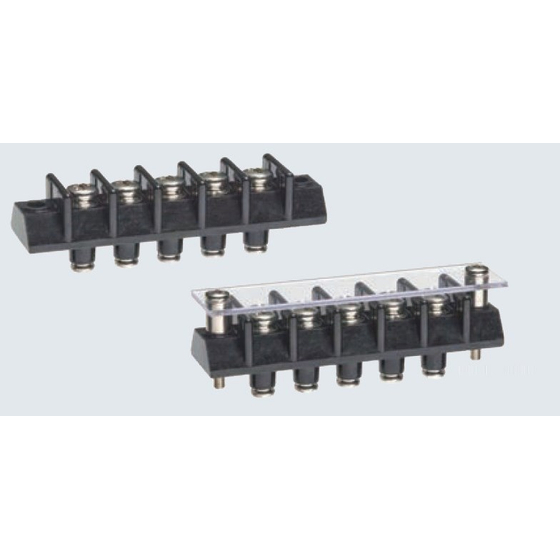

We would like to introduce the Terada Electric products that we handle. The "G-04 type" is a through-type terminal block with a rated insulation voltage of 250V. It is RoHS compliant and adopts a screw fastening method with ribs on both sides. A version with a cover is also available. 【Ratings and Performance (Excerpt)】 ■ Rated insulation voltage: 250V ■ Rated current: 15A ■ Compatible wire: 2mm² ■ Terminal screws: M4 (top) / M3 (bottom) ■ Terminal pitch: 11mm *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Other Ratings and Performance】 ■ Insulation Resistance: DC500V megger 100MΩ or more ■ Dielectric Strength: AC2000V for 1 minute without abnormalities ■ Operating Temperature and Humidity Range: -50 to 85℃, 45 to 85% RH (provided there is no freezing or condensation) ■ Number of Poles: 2 to 22P ■ Main Body: Phenolic Resin *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
