Ultra-compact and lightweight! Imaging sonar with finely adjustable frequency settings.

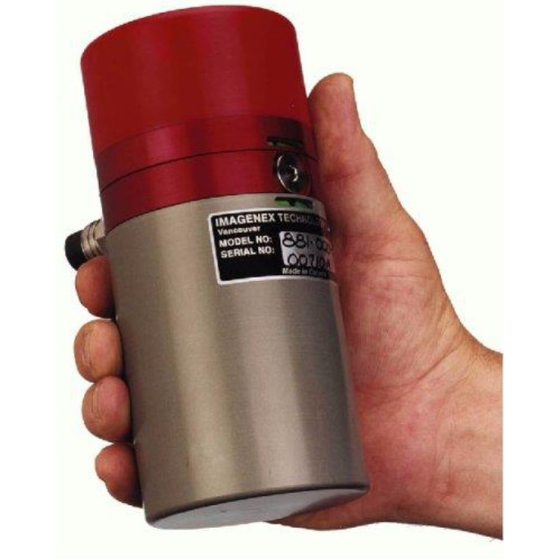

The "MODEL 881A" is a super compact variable frequency imaging sonar. By changing the ultrasonic frequency according to the underwater target situation, it displays precise images. Additionally, it allows for measurement of the size of objects using a cursor between two points, enabling confirmation of targets and searches. Control is done via a notebook PC, making it space-efficient, and long-term recording and editing are also easy. 【Features】 ■ Super compact and lightweight ■ Frequency can be finely adjusted (280kHz to 1.1MHz in 5kHz increments) ■ Easy operation with Windows-compatible software ■ Confirmation of targets and searches is possible ■ Long-term recording and editing are also easy *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Measurable Radius: 1m to 200m ■Mode Selection: Polar, Sector, Side Scan ■Sonar Head Rotation Speed: 5 levels of adjustment ■Sonar Head Rotation Range: 360° Endless ■Power Supply: DC24V, under 5W ■Dimensions: Diameter 79.4mm × Height 181mm (excluding protrusions) ■Weight: 1.5kg in air, 0.6kg in water (for 1000m specification) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
