Reduce initial costs and achieve high-performance PV system performance at a low price!

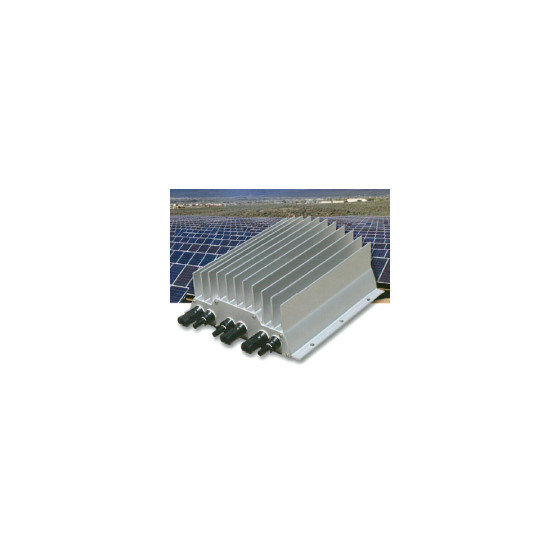

The "Ampt V1300 String Optimizer" is a DC/DC converter aimed at improving the performance of mega-solar systems and reducing system costs. By implementing MPPT (Maximum Power Point Tracking) throughout the array, it increases power generation over the lifetime of the mega-solar system. The Ampt String Optimizer also performs output voltage/current limiting on individual string optimizers, leading to cost reductions in electrical-related BOS and inverters. As a result, it provides a solution that genuinely reduces costs while increasing production. 【Features】 ■ Improved accuracy of MPPT (Maximum Power Point Tracking) enhances system performance ■ Cable cost reduction through string stretch technology ■ Operation of inverters in Ampt mode reduces inverter costs ■ Increased ROI (Return on Investment) for PV systems with Ampt technology *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Electrical Specifications】 <V1300 Series 12.8A Model> ■Input ・Maximum voltage per input circuit 1: 1300V ・Maximum current per input circuit 2: 12.8A ・MPP range per input circuit: 190 - 1100V ・Number of input circuits: 2 ■Output ・Voltage range: 0 - 1300V ・Maximum current: 12.8A ・Maximum continuous output power: 16kWdc ・Efficiency (Max / CEC / Euro): 99.5 / 99.3 / 99.2 % <V1300 Series 12A Model> ■Input ・Maximum voltage per input circuit 1: 1300V ・Maximum current per input circuit 2: 12.3A ・MPP range per input circuit: 190 - 1100V ・Number of input circuits: 2 ■Output ・Voltage range: 0 - 1300V ・Maximum current: 12A ・Maximum continuous output power: 15kWdc ・Efficiency (Max / CEC / Euro): 99.5 / 99.3 / 99.2 % *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Ampt Japan is a company that provides solutions suitable at the system level to reduce the costs of large solar systems and increase power production in the global solar market. In addition to power conversion technology and software solutions, it has led the industry in all aspects of solar power generation, including design, applications, and markets. Please feel free to contact us if you have any inquiries.
