It is possible to measure a range of 0.01 to 999,900 cd/m² at an angle of 1°.
- M396S-150N: It is possible to measure a range of 0.01 to 999,900 cd/m² at a measurement angle of 1°. - M396S-160N: It is possible to measure a range of 0.1 to 9,999,000 cd/m² at a measurement angle of 1/3°.
Inquire About This Product
basic information

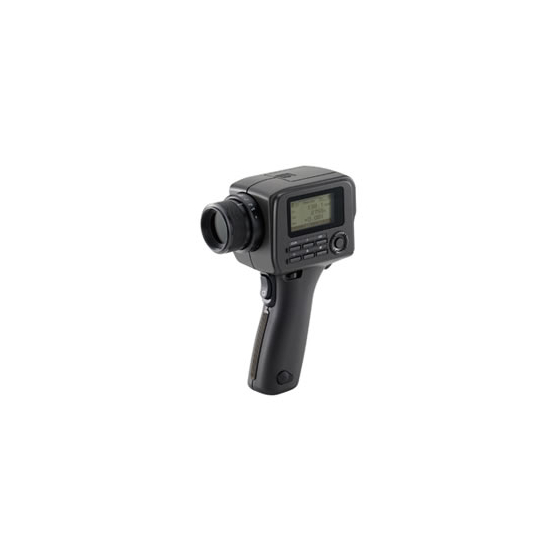

■Achieving High Precision The M396S-150N/M396S-160N is a high-precision tristimulus colorimeter that features three newly equipped sensors with sensitivities that match the standard spectral response (CIE 1931 color matching functions) corresponding to human eye sensitivity. * In the CIE 1931 color matching functions, the peak of the spectral response of X-bar (λ) exists not only in the long-wavelength region (X-bar2(λ)) but also in the short-wavelength region (X-bar1(λ)). However, conventional colorimeter sensors lack sensitivity in the X-bar1(λ) region, leading to the calculation of X-bar1(λ) based on Z-bar(λ). In contrast, the sensors of the M396S-150N/M396S-160N have sensitivity in the X-bar1(λ) region, enabling measurements that are closer to the ideal sensitivity of the human eye.
Price range
Delivery Time
※Please check each time.
Applications/Examples of results
●Main Features Supported OS Windows 7 Professional 32bit, 64bit Windows 8.1 Pro 32bit, 64bit Windows 10 Pro 32bit, 64bit Control of Measuring Instruments Single Shot Measurement Continuous Measurement Interval Measurement 2 to 5,000 times / 3 to 3,600 seconds (1-second interval) Trigger Measurement Various Settings for Measuring Instruments Importing Data Accumulated in Measuring Instruments User Calibration Reference Values Registration Writing to Measuring Instruments Data List Display of Reference Value Data and Measurement Data Editing (Delete, Copy & Paste) External Input/Output Text Creation, Saving in CSV Format, Clipboard Copy of List
catalog（1）
Download All Catalogs
