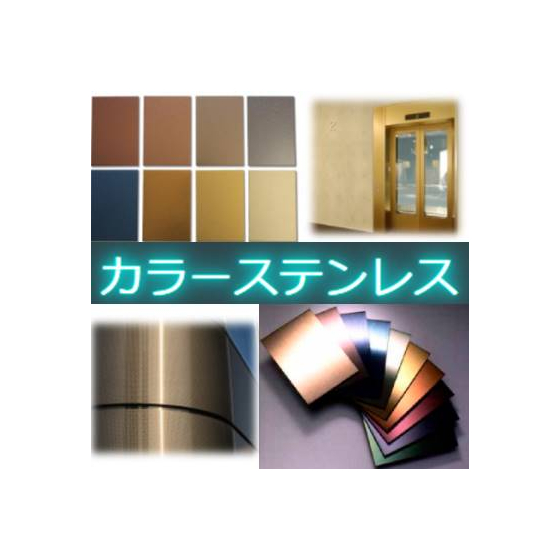

Uniform coloring with PVD coating 'MG-Glanz' and color development through an oxide film 'Inco Color'! Introducing two types of colored stainless steel!
At San Act Co., Ltd., we have two types of colored stainless steel equipment: 'MG-Glanz' for sputtering (PVD coating) and 'Inco Color' for color development. 'MG-Glanz' involves depositing materials in a vacuum, and through PVD coating, it achieves uniform coloring and improved wear resistance, making it suitable for high-end designs. 'Inco Color' is a method that produces color through the oxide film formed at that time. The light reflected on the surface of the oxide film and the light refracted through the oxide film create interference phenomena with the light reflected from the metal surface, resulting in various color shades. 【Technologies Held】 ■ MG-Glanz ■ Inco Color *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Main Specifications (Excerpt)】 〔MG-Glanz〕 ■Basic Color Tones: 8 colors ■Material, Finish, Dimensions, etc. - Steel Types: SUS304, SUS316, and others - Surface Finish: Mirror, HL, Vibration, Bead Blast, Composite Finish, etc. - Material Thickness: 0.6 to 3.0mm (thin plates require flatness of the material) - Standard Processing Dimensions: Within 1219mm × 3048mm - Maximum Processing Dimensions: 1219mm × 4000mm (range possible with production equipment) 〔Inco Color〕 ■Material, Finish, Dimensions, etc. - Steel Types: SUS304, SUS316, and others (ferromagnetic metals cannot be processed) - Standard Colors - HL: Bronze, Blue, Gray, Gold, Magenta, Black - MR: Blue, Gold, Black - Vibration: Black *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■MG-Glanz ・High-end design, etc. *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
San Act Co., Ltd. is a company located in Aichi Prefecture that specializes in elevator design painting, metallic painting, pearl painting, mirror finish polishing, color clear coating, and other special coatings. We have facilities such as automated painting lines, general-purpose booths, and drying ovens to accommodate various painting needs. If you have any inquiries regarding painting, please feel free to contact us.
